Single-phase bridge rectifier diode with a 1.2kV repetitive reverse voltage rating and 35A average rectified current. Features a 5-pin D-63 package for through-hole mounting, offering 2.7kV isolation voltage and a maximum operating temperature of 150°C. Handles peak non-repetitive surge currents up to 500A, with a maximum forward current of 35A and a low reverse current of 200uA. RoHS compliant, this component is designed for robust power rectification applications.
PackageD
Current Rating35A
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay VS-36MT120 technical specifications.
General
| Average Rectified Current | 35A |
| Package/Case | D |
| Current Rating | 35A |
| Forward Current | 35A |
| Height | 10mm |
| Isolation Voltage | 2.7kV |
| Length | 28.5mm |
| Max Forward Surge Current (Ifsm) | 500A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 350mW |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2kV |
| Max Reverse Current | 200uA |
| Max Surge Current | 475A |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 20 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 500A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| Weight | 0.705479oz |
| Width | 28.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VS-36MT120 Datasheet
Download the complete datasheet for Vishay VS-36MT120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

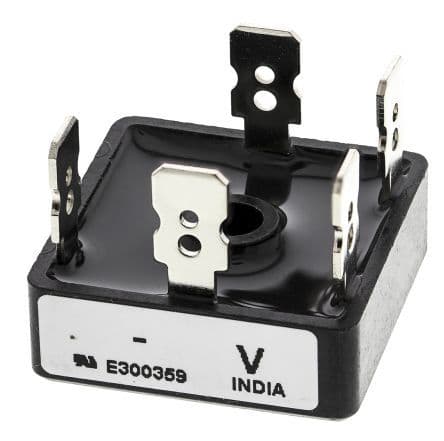

Product Images
