Vishay
VS-40EPS12-M3
DIODE 40 A, 1200 V, SILICON, RECTIFIER DIODE, HALOGEN FREE AND ROHS COMPLIANT, MODIFIED TO-247AC, 2 PIN, Rectifier Diode
PackageTO-247-2
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay VS-40EPS12-M3 technical specifications.
General
Average Rectified Current
40A
Package/Case
TO-247-2
Forward Current
40A
Height
24.99mm
Max Forward Surge Current (Ifsm)
475A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Max Reverse Current
100uA
Max Reverse Voltage (DC)
1.2kV
Mount
Through Hole
Packaging
Rail/Tube
Reverse Voltage
1.2kV
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay VS-40EPS12-M3 Datasheet
Download the complete datasheet for Vishay VS-40EPS12-M3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

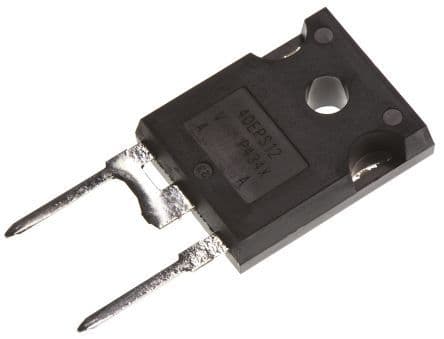

Product Images
