Vishay
VS-40TPS12-M3
Silicon Controlled Rectifier, 55 A, 1200 V, SCR, TO-247AC, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-3
PackageTO-247-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay VS-40TPS12-M3 technical specifications.
General
Package/Case
TO-247-3
Hold Current
200mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Mount
Through Hole
Packaging
Rail/Tube
RMS Current (Irms)
55A
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay VS-40TPS12-M3 Datasheet
Download the complete datasheet for Vishay VS-40TPS12-M3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

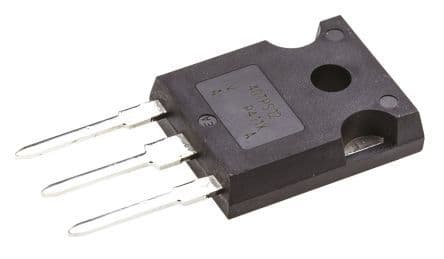

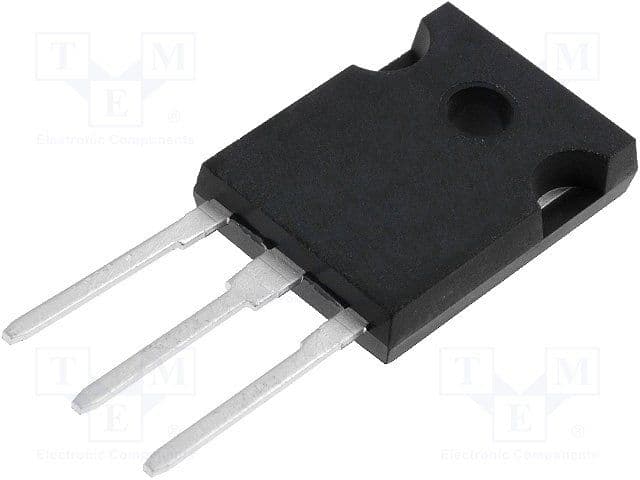

Product Images
