High-performance rectifier diode for general-purpose applications. Features 8A average rectified current and 600V repetitive reverse voltage. Silicon construction in a DPAK surface mount package. Maximum forward surge current capability of 60A. Operating temperature range from -55°C to 150°C. RoHS compliant with a 55ns reverse recovery time.
PackageDPAK
MountingSurface Mount, Through Hole
Power14W
Quick Jump:
Technical Specifications
Vishay VS-HFA08SD60SPBF technical specifications.
General
| Average Rectified Current | 8A |
| Package/Case | DPAK |
| Forward Current | 8A |
| Height | 2.39mm |
| Length | 6.73mm |
| Max Forward Surge Current (Ifsm) | 60A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 60A |
| Mount | Surface Mount, Through Hole |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 60A |
| Power Dissipation | 14W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 55ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| Series | HEXFRED® |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VS-HFA08SD60SPBF Datasheet
Download the complete datasheet for Vishay VS-HFA08SD60SPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

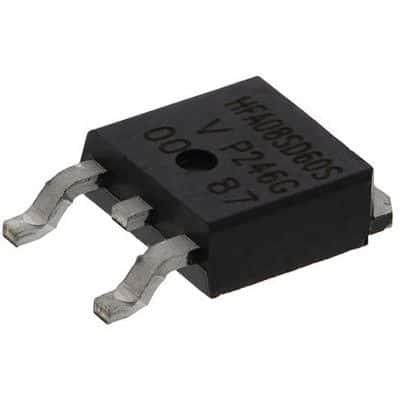

Product Images
