The VS-HFA15PB60-N3 is a general purpose rectifier diode from Vishay with a maximum reverse voltage of 600V and average rectified current of 15A. It is packaged in a TO-247-2 case and is mounted through a hole. The device has a reverse recovery time of 60ns and is compliant with RoHS standards. It is available in a bulk packaging quantity of 25 units.
PackageTO-247-2
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay VS-HFA15PB60-N3 technical specifications.
General
| Average Rectified Current | 15A |
| Package/Case | TO-247-2 |
| Max Reverse Voltage (DC) | 600V |
| Mount | Through Hole |
| Package Quantity | 25 |
| Packaging | Bulk |
| Reverse Recovery Time | 60ns |
| RoHS Compliant | Yes |
| Series | HEXFRED® |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VS-HFA15PB60-N3 Datasheet
Download the complete datasheet for Vishay VS-HFA15PB60-N3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

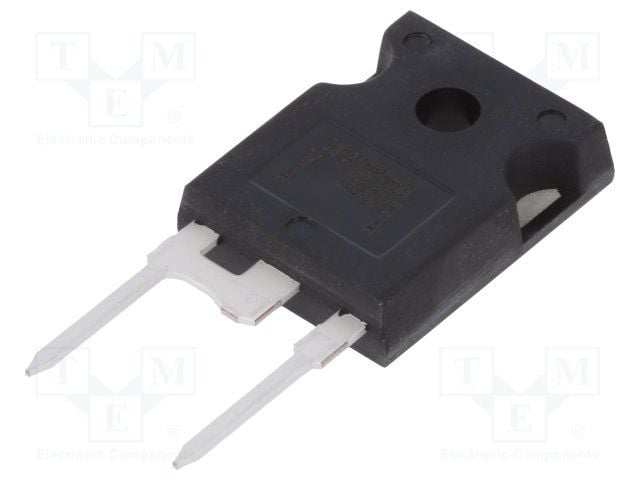

Product Images
