Technical Specifications
Vishay VS-MBRB1045TRLPBF technical specifications.
General
Average Rectified Current
10A
Package/Case
TO-263-3
Forward Current
20A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
45V
Max Reverse Current
100uA
Max Reverse Voltage (DC)
45V
Mount
Surface Mount
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
1.06kA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay VS-MBRB1045TRLPBF Datasheet
Download the complete datasheet for Vishay VS-MBRB1045TRLPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

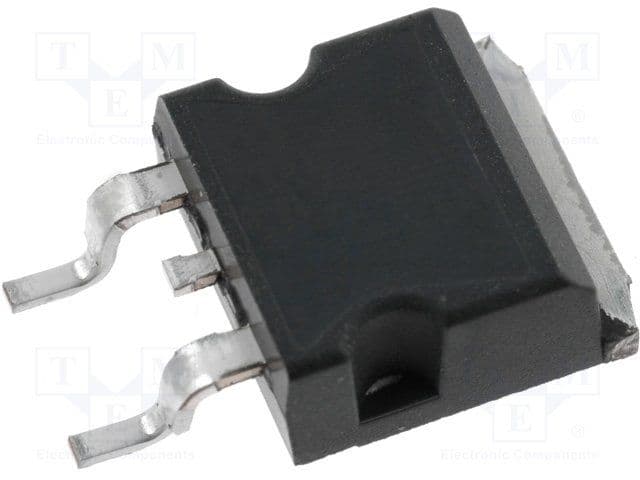

Product Images
