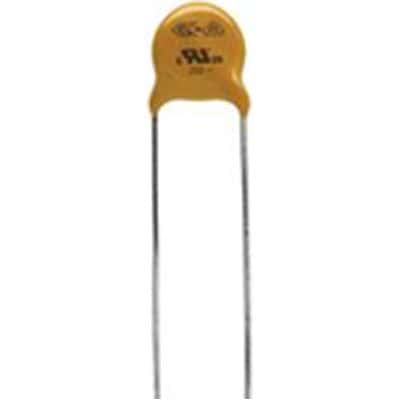

Single layer ceramic capacitor with Y5U dielectric, rated X1/Y2 for safety applications. Features 1nF capacitance with a 20% tolerance, operating across a wide temperature range from -40°C to 125°C. Designed with radial leads and a 7.5mm pitch, this through-hole component supports 440VAC/300VAC voltage ratings. The capacitor has a 5mm width and depth, with 0.6mm lead diameter, and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay VY2102M29Y5US63V7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 1nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 5mm |
| Diameter | 7.5mm |
| Dielectric | Y5U |
| Dissipation Factor | 2.5% |
| Height | 5mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Length | 30mm |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Kinked |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | X1, Y2 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | VY2 |
| Termination | Radial |
| Thickness | 5mm |
| Tolerance | 20% |
| Voltage | 440V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 300V |
| Width | 5mm |
| RoHS | Compliant |
