Surface mount metal strip current sense resistor, 0.25W power rating, 1% resistance tolerance, and 75 ppm temperature coefficient. Features 30mΩ resistance, 80mV voltage rating, and a 1206 case size. Constructed with tin, matte plating and rated for operation from -65°C to 170°C. Moisture resistant, automotive AEC-Q200 qualified, and anti-sulfur.
Package1206
Resistance30mR
Voltage Rating80mV
Quick Jump:
Technical Specifications
Vishay WSL1206R0300FEA technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Rectangular |
| Contact Plating | Tin, Matte |
| Depth | 1.6mm |
| Features | Moisture Resistant, Automotive AEC-Q200, Anti-Sulfur |
| Height | 0.035inch |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 170°C |
| Max Power Dissipation | 250mW |
| Military Standard | Not |
| Min Operating Temperature | -65°C |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 30mR |
| Resistance Tolerance | 1% |
| Resistor Type | Metal Strip, Metal Film |
| RoHS Compliant | Yes |
| Series | WSL |
| Size Code | 1206 |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 80mV |
| Voltage Rating (AC) | 80mV |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay WSL1206R0300FEA Datasheet
Download the complete datasheet for Vishay WSL1206R0300FEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

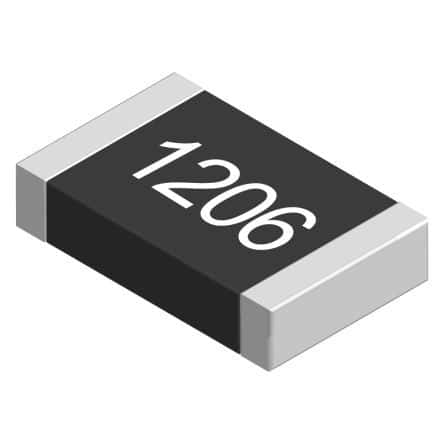

Product Images
