Surface mount metal strip current sense resistor, 1W power rating, 0.33 ohm resistance with 1% tolerance. Features a 2512 case size, 75 ppm temperature coefficient, and a maximum operating temperature of 170°C. Designed for automotive applications with AEC-Q200 qualification and moisture resistance. Termination plating is matte tin.
Package2512
Resistance330mR
Voltage Rating570mV
Quick Jump:
Technical Specifications
Vishay WSL2512R3300FEA technical specifications.
General
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6432 |
| Package/Case | 2512 |
| Construction | Rectangular |
| Contact Plating | Tin, Matte |
| Depth | 3.18mm |
| Features | Moisture Resistant, Automotive AEC-Q200, Anti-Sulfur |
| Height | 0.635mm |
| Lead Free | Lead Free |
| Length | 6.35mm |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1W |
| Military Standard | Not |
| Number of Terminations | 2 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 330mR |
| Resistance Tolerance | 1% |
| Resistor Type | Metal Strip |
| RoHS Compliant | No |
| Series | WSL |
| Size Code | 2512 |
| Technology | METAL STRIP |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 570mV |
| Voltage Rating (AC) | 570mV |
| Weight | 0.002243oz |
| Width | 3.2mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Vishay WSL2512R3300FEA Datasheet
Download the complete datasheet for Vishay WSL2512R3300FEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

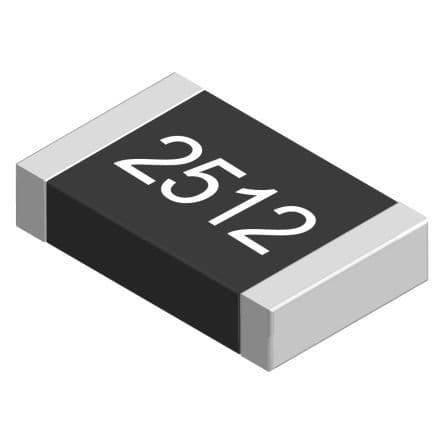

Product Images
