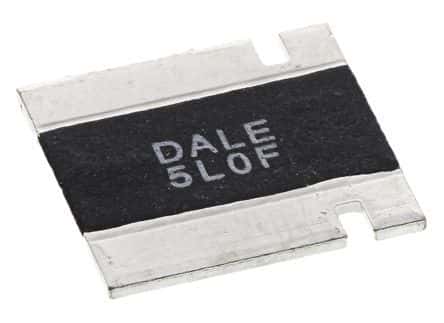

Surface mount metal strip current sense resistor, 3W power rating, 5mΩ resistance with 1% tolerance and 50 ppm TCR. Features moisture resistance, automotive AEC-Q200 qualification, and anti-sulfur construction. Operates from -65°C to 170°C with a 120mV voltage rating. Housed in a 3637 (9.14mm x 9.4mm x 0.635mm) rectangular chip package with tin plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay WSL36375L000FEA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 3637 |
| Case Code (Metric) | 9194 |
| Package/Case | 3637 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 9.4mm |
| Features | Moisture Resistant, Automotive AEC-Q200, Anti-Sulfur |
| Height | 0.635mm |
| Lead Free | Lead Free |
| Length | 9.14mm |
| Max Operating Temperature | 170°C |
| Military Standard | Not |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 3W |
| Number of Terminations | 4 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 5mR |
| Resistance Tolerance | 1% |
| Resistor Type | Metal Strip, Metal Film |
| RoHS Compliant | Yes |
| Series | WSL |
| Size Code | 3637 |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 120mV |
| Voltage Rating (AC) | 120mV |
| Weight | 0.010229oz |
| Width | 9.4mm |
| RoHS | Compliant |
