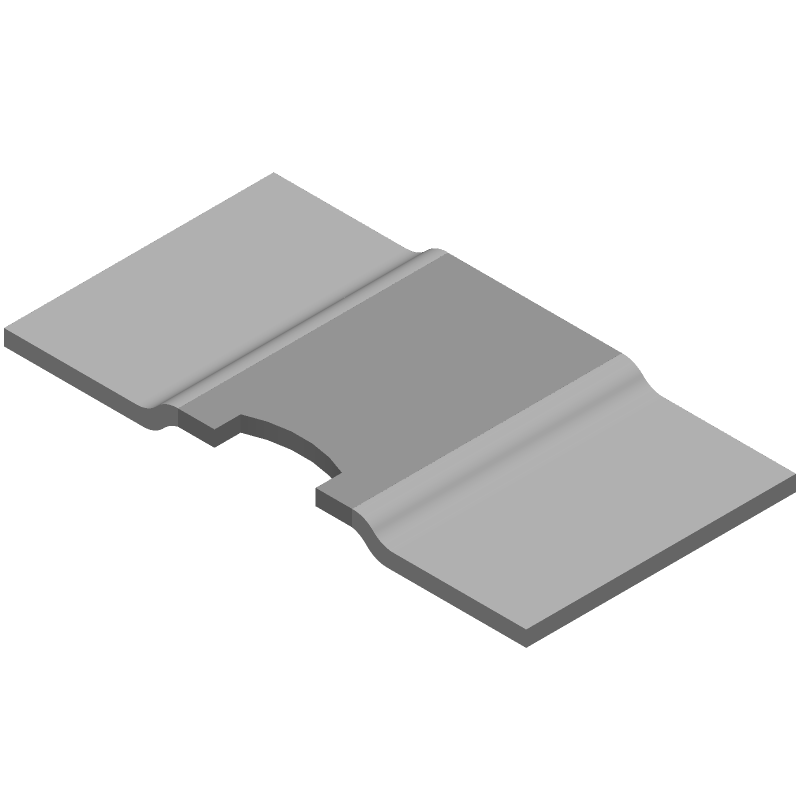

The WSLP Series resistor is a moisture-resistant, automotive-grade component with a maximum operating temperature of 170°C and a minimum operating temperature of -65°C. It has a maximum power dissipation of 10W and is available in a 2-termination package. The resistor features a tolerance of 1% and a resistance of 0.5mR. It is packaged in tape and reel and meets AEC-Q200 ratings.
Package5931
Resistance0.5mR
Quick Jump:
Technical Specifications
Vishay WSLP5931L5000FEB technical specifications.
General
| Case Code (Imperial) | 5931 |
| Package/Case | 5931 |
| Features | Moisture Resistant, Automotive AEC-Q200, Anti-Sulfur |
| Height | 0.5mm |
| Length | 15mm |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 10W |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Resistance | 0.5mR |
| Series | WSLP |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Width | 7.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay WSLP5931L5000FEB Datasheet
Download the complete datasheet for Vishay WSLP5931L5000FEB to view detailed technical specifications.
No datasheet is available for this part.
