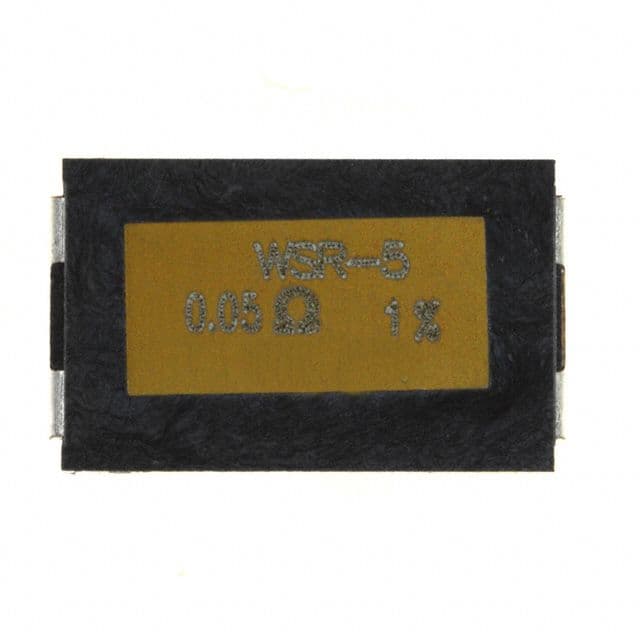

5W, 50mR, 1% tolerance metal strip chip resistor in a 4527 SMD/SMT package. Features moisture resistance, automotive AEC-Q200 qualification, and anti-sulfur properties. Operating temperature range from -65°C to 275°C with a 500mV voltage rating. Contact plating includes tin and silver.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay WSR5R0500FEA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 4527 |
| Package/Case | 4527 |
| Contact Plating | Tin, Silver |
| Features | Moisture Resistant, Automotive AEC-Q200, Anti-Sulfur |
| Height | 2.41mm |
| Length | 11.56mm |
| Max Operating Temperature | 275°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 5W |
| Number of Terminations | 2 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 50mR |
| Resistance Tolerance | 1% |
| Resistor Type | Metal Strip |
| RoHS Compliant | Yes |
| Series | WSR |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 500mV |
| Voltage Rating (AC) | 500mV |
| Weight | 1.8E-05oz |
| Width | 6.98mm |
| RoHS | Compliant |
