Single layer ceramic capacitor with 2.2nF capacitance and 20% tolerance. Features Y5U dielectric, 440VAC/250VDC voltage rating, and a maximum operating temperature of 125°C. Radial package with 5mm lead pitch, 0.6mm lead diameter, and straight leads for through-hole mounting. Dimensions include 9mm length, 4.5mm width, and 4.5mm depth. RoHS compliant and supplied in bulk packaging.
PackageRadial
Voltage250V
Capacitance2.2nF
Voltage Rating440V
Quick Jump:
Technical Specifications
Vishay WYO222MCMBF0KR technical specifications.
General
Capacitance
2.2nF
Package/Case
Radial
Construction
RADIAL
Depth
4.5mm
Dielectric
Y5U
Height - Seated (Max)
0.472inch
Lead Diameter
0.6mm
Lead Length
30mm
Lead Pitch
5mm
Lead/Base Style
Straight
Length
9mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
2000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WYO
Termination
Radial
Tolerance
20%
Voltage
250V
Voltage Rating
440V
Voltage Rating (AC)
250V
DC Rated Voltage
440V
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay WYO222MCMBF0KR Datasheet
Download the complete datasheet for Vishay WYO222MCMBF0KR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

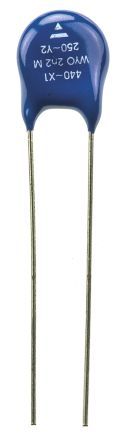

Product Images
