W+P Products
154-040-1-50-00
Black Socket Contact, Copper Alloy, 0.6mm Pin Diameter, 5.8mm Socket Depth
This black socket contact is made from copper alloy with a pin diameter of 0.6mm and a socket depth of 5.8mm. It has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. The contact is designed for socket mounting and has a height of 5.84mm and a width of 8.3mm. It is used in various applications where a reliable and durable contact is required.
MountingSocket
Quick Jump:
Technical Specifications
W+P Products 154-040-1-50-00 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Height | 5.84mm |
| Length | 101.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Socket |
| Number of Rows | 1 |
| Pin Diameter | 0.6mm |
| Socket Depth | 5.8mm |
| Width | 8.3mm |
Compliance
| RoHS | Not Compliant |
Datasheet
W+P Products 154-040-1-50-00 Datasheet
Download the complete datasheet for W+P Products 154-040-1-50-00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

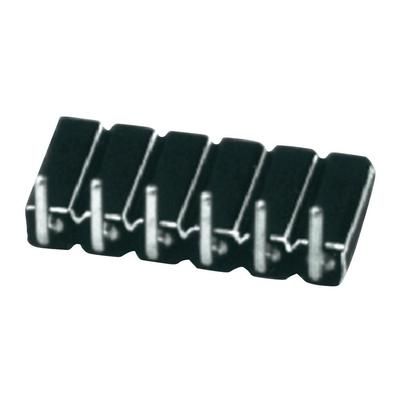

Product Images
