Technical Specifications
White Rodgers 120-906 technical specifications.
General
| Coil Voltage (AC) | 12V |
| Contact Current Rating | 80A |
| Contact Material | Copper Alloy |
| Contact Voltage Rating (DC) | 12V |
| Depth | 3.25inch |
| Lead Free | Lead Free |
| Length | 2.13inch |
| Mount | Brackets |
| Nominal Supply Current | 2A |
| Number of Poles | 1 |
| Operating Supply Voltage | 12V |
| Series | 120-900 Series |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
| Width | 2.88inch |
Compliance
| RoHS | Compliant |
Datasheet
White Rodgers 120-906 Datasheet
Download the complete datasheet for White Rodgers 120-906 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

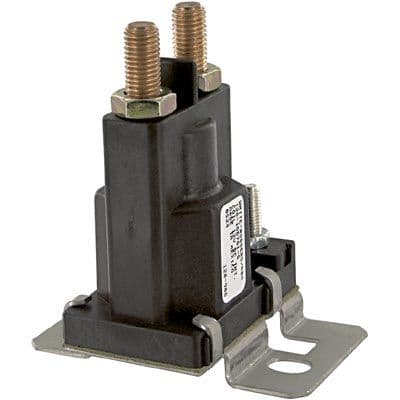

Product Images
