Technical Specifications
White Rodgers 120-943 technical specifications.
General
| Approvals | UL |
| Coil Resistance | 16R |
| Contact Material | Silver |
| Current Rating | 100A |
| Depth | 3.25inch |
| Length | 2.5inch |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -20°C |
| Mount | Brackets |
| Number of Poles | 1 |
| Operating Supply Voltage | 12V |
| Reach SVHC Compliant | Unknown |
| Termination | Quick Connect |
| DC Rated Voltage | 15V |
| Width | 3inch |
Compliance
| RoHS | Compliant |
Datasheet
White Rodgers 120-943 Datasheet
Download the complete datasheet for White Rodgers 120-943 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

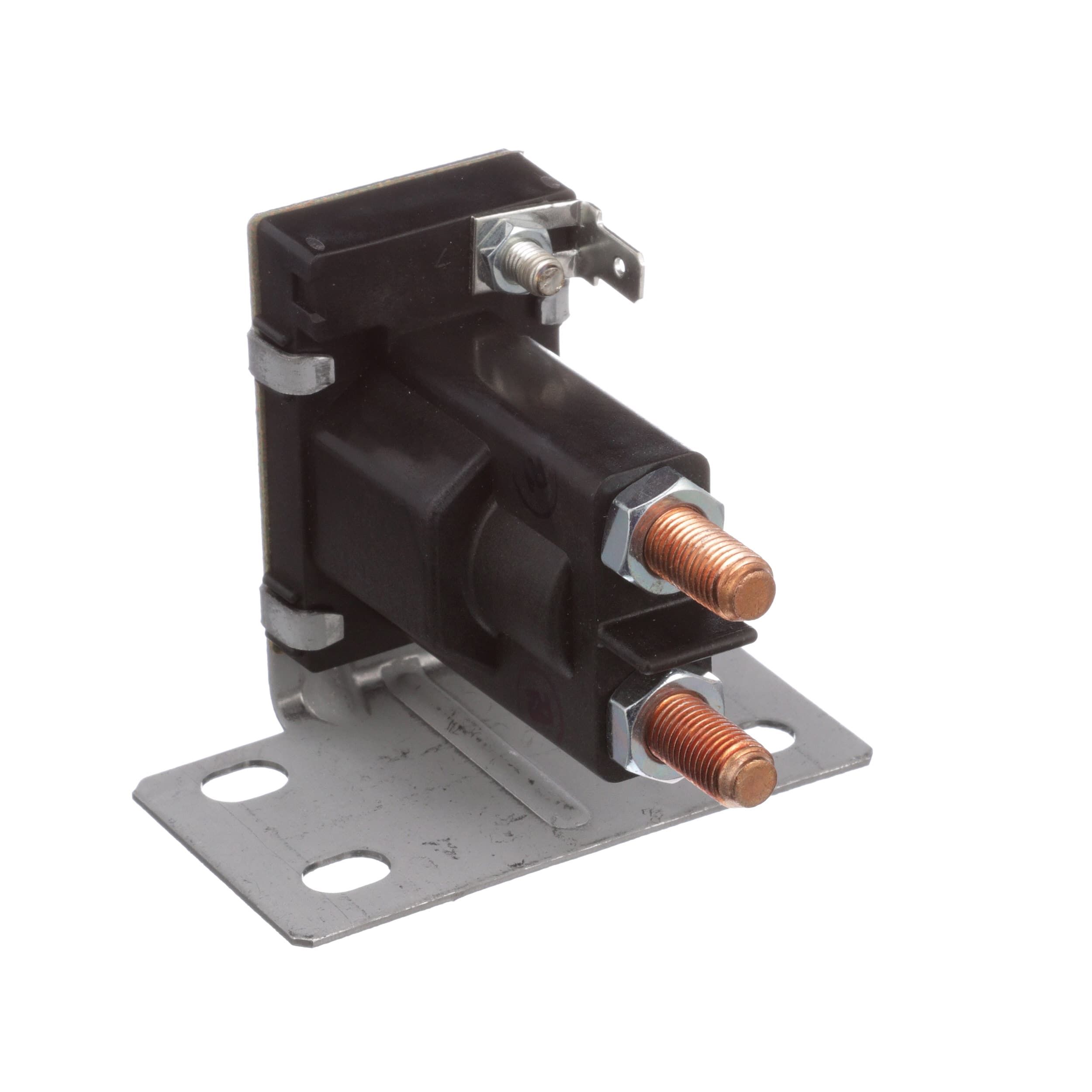

Product Images
