This relay from White Rodgers features a 100A silver contact rating and is approved by UL. It has a package size of 100 and a coil resistance of 53 ohms. The relay is designed for use in applications with operating temperatures ranging from -40°C to 149°C. It is also RoHS compliant and suitable for use with a 24V supply voltage.
Package100
Current Rating100A
MountingBrackets
Quick Jump:
Technical Specifications
White Rodgers 124-903 technical specifications.
General
| Approvals | UL |
| Package/Case | 100 |
| Coil Resistance | 53R |
| Contact Current Rating | 100A |
| Contact Material | Silver |
| Current Rating | 100A |
| Depth | 2.188inch |
| Height | 55.6mm |
| Length | 3.563inch |
| Max Operating Temperature | 149°C |
| Min Operating Temperature | -40°C |
| Mount | Brackets |
| Number of Poles | 1 |
| Operating Supply Voltage | 24V |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 3.125inch |
Compliance
| RoHS | Compliant |
Datasheet
White Rodgers 124-903 Datasheet
Download the complete datasheet for White Rodgers 124-903 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

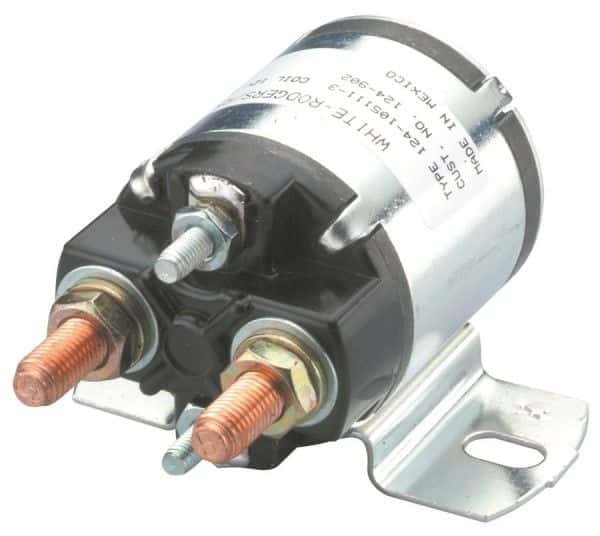

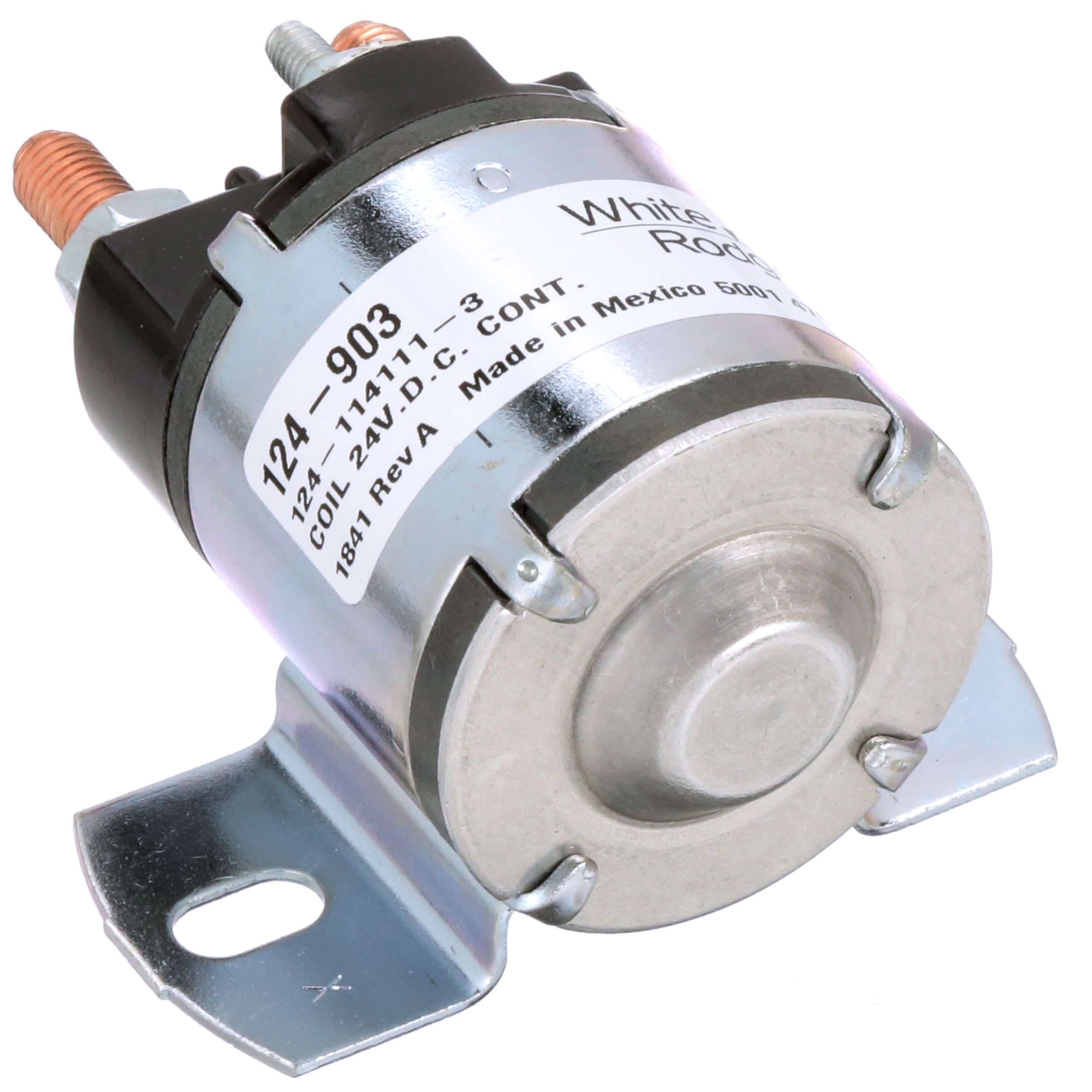

Product Images
