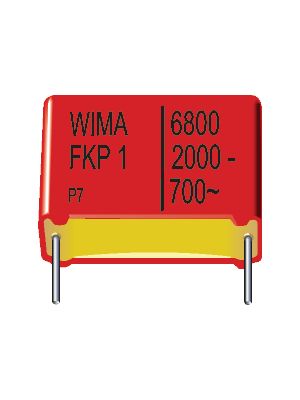

Polypropylene film capacitor with 680pF capacitance and 2kV voltage rating. Features radial leaded construction with a 15mm lead pitch and 0.8mm lead diameter. Operates across a temperature range of -55°C to 100°C with a dissipation factor of 0.1%. This RoHS compliant component is suitable for through-hole mounting.
PackageRadial
Capacitance680pF
Voltage Rating2kV
Quick Jump:
Technical Specifications
Wima FKP1U006804C00KSSD technical specifications.
General
| Capacitance | 680pF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 6mm |
| Dielectric | PP |
| Dielectric Material | Polypropylene |
| Dissipation Factor | 0.1% |
| Height | 12.5mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 15mm |
| Length | 18mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FKP1 |
| Termination | Radial |
| Tolerance | 10% |
| Voltage Rating | 2kV |
| Voltage Rating (AC) | 2kV |
| DC Rated Voltage | 2kV |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Wima FKP1U006804C00KSSD Datasheet
Download the complete datasheet for Wima FKP1U006804C00KSSD to view detailed technical specifications.
No datasheet is available for this part.
