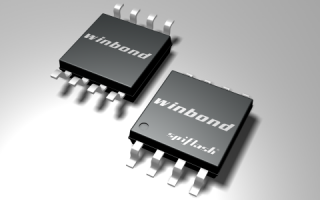

2Mb SPI Flash memory, featuring a 24-bit address bus and 104MHz frequency. This non-volatile memory offers a fast 8ns maximum access time and operates with a synchronous interface. Packaged in a green, 0.150-inch SOIC-8 surface mount configuration, it supports supply voltages from 2.3V to 3.6V and operates across a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Winbond W25X20CLSNIG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time-Max | 8ns |
| Address Bus Width | 24b |
| Package/Case | SOIC |
| Density | 2Mb |
| Frequency | 104MHz |
| Interface | SPI, Serial |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 2Mb |
| Memory Type | Non-Volatile, , FLASH |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Words | 256000 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SpiFlash® |
| Supply Current | 14mA |
| Sync/Async | Synchronous |
| RoHS | Compliant |
