Technical Specifications
Winbond W632GG6KB-12 technical specifications.
General
| Access Time | 20ns |
| Access Time-Max | 225ps |
| Address Bus Width | 17b |
| Package/Case | TFBGA |
| Density | 2Gb |
| Frequency | 800MHz |
| Max Frequency | 1.6GHz |
| Max Operating Temperature | 95°C |
| Max Supply Voltage | 1.575V |
| Memory Size | 2Gb |
| Memory Type | Volatile, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.425V |
| Mount | Surface Mount |
| Operating Supply Voltage | 1.5V |
| Organization | 128MX16 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Supply Current | 250mA |
Compliance
| RoHS | Compliant |
Datasheet
Winbond W632GG6KB-12 Datasheet
Download the complete datasheet for Winbond W632GG6KB-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

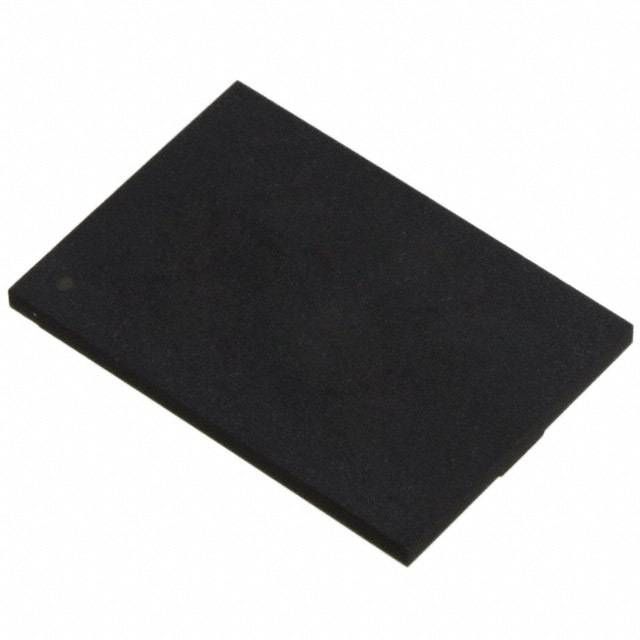

Product Images
