1Gb DDR SDRAM with 64Mx16 organization, featuring a 16-bit address bus and parallel interface. Operates at a maximum frequency of 200MHz with a supply voltage range of 1.7V to 1.9V. Packaged in a TFBGA with 60 balls, 0.80mm pitch, and dimensions of 8x9mm. This RoHS compliant component offers an operating temperature range from -40°C to 95°C.
Frequency200MHz
PackageTFBGA
Current115mA
Quick Jump:
Technical Specifications
Winbond W94AD6KBHX5I technical specifications.
General
| Address Bus Width | 16b |
| Package/Case | TFBGA |
| Density | 1Gb |
| Interface | Parallel |
| Max Frequency | 200MHz |
| Max Operating Temperature | 95°C |
| Max Supply Voltage | 1.9V |
| Memory Type | RAM, , SDRAM, LPDDR |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.7V |
| Operating Supply Voltage | 1.8V |
| Organization | 64MX16 |
| Package Quantity | 312 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Supply Current | 115mA |
Compliance
| RoHS | Compliant |
Datasheet
Winbond W94AD6KBHX5I Datasheet
Download the complete datasheet for Winbond W94AD6KBHX5I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

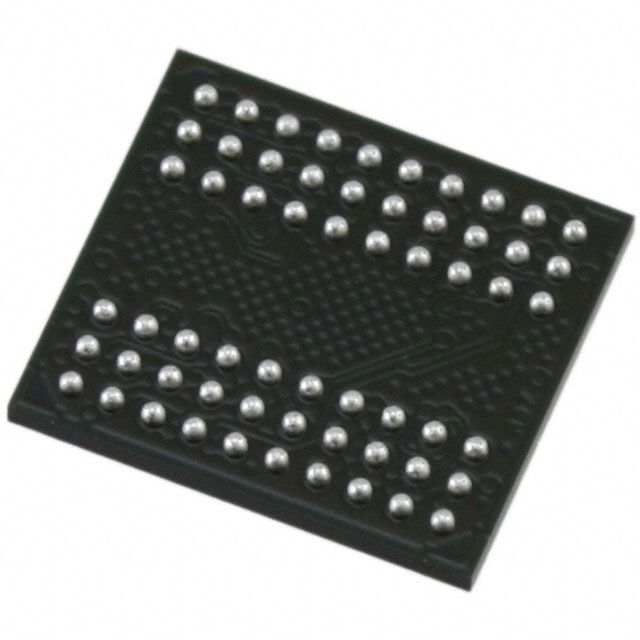

Product Images
