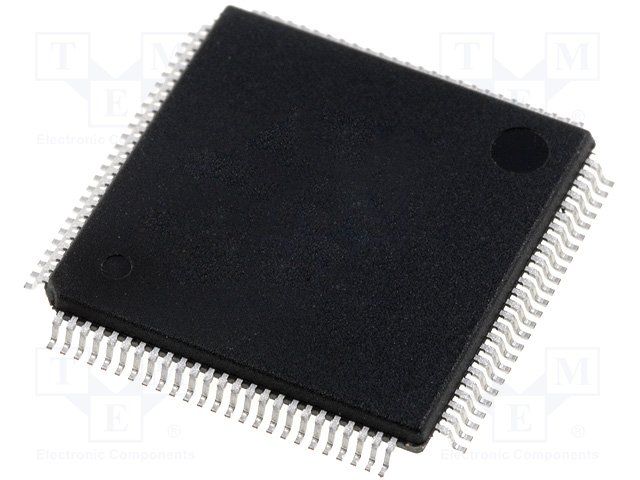

Single-chip Ethernet controller featuring a 100Mbps data rate and full-duplex operation. This interface IC supports a parallel interface and operates from a 3V to 3.6V supply voltage, with a nominal 3.3V. Designed for surface mount applications, it is housed in a 100-pin LQFP package measuring 14mm x 14mm x 1.4mm. Operating across a temperature range of -40°C to 80°C, this lead-free and RoHS compliant component consumes 5mA of operating supply current.
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Wiznet W5300 technical specifications.
General
Package/Case
LQFP
Data Rate
100Mbps
Height
1.4mm
Interface
Parallel
Lead Free
Lead Free
Length
14mm
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Current
5mA
Operating Supply Voltage
3.3V
Package Quantity
90
Packaging
Tray
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Voltage-Nom
3.6V
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Wiznet W5300 Datasheet
Download the complete datasheet for Wiznet W5300 to view detailed technical specifications.
