Ethernet module featuring 100Mbps data rate and parallel, SPI, and Ethernet interfaces. Operating supply voltage is 3.3V with a nominal supply voltage of 5V. This lead-free component operates within a temperature range of 0°C to 70°C. Module dimensions are 48mm in length, 25mm in width, and 13.5mm in height.
PackageModule
Quick Jump:
Technical Specifications
Wiznet WIZ810MJ technical specifications.
General
| Package/Case | Module |
| Data Rate | 100Mbps |
| Height | 13.5mm |
| Interface | Parallel, SPI, Ethernet |
| Lead Free | Lead Free |
| Length | 48mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Number of Functions | 1 |
| Operating Supply Voltage | 3.3V |
| Packaging | Bulk |
| Supply Voltage-Nom | 5V |
| Width | 25mm |
Compliance
| RoHS | Compliant |
Datasheet
Wiznet WIZ810MJ Datasheet
Download the complete datasheet for Wiznet WIZ810MJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

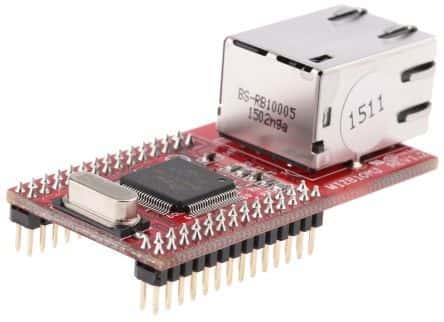

Product Images
