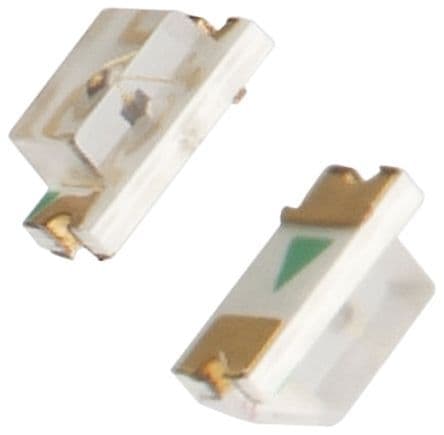

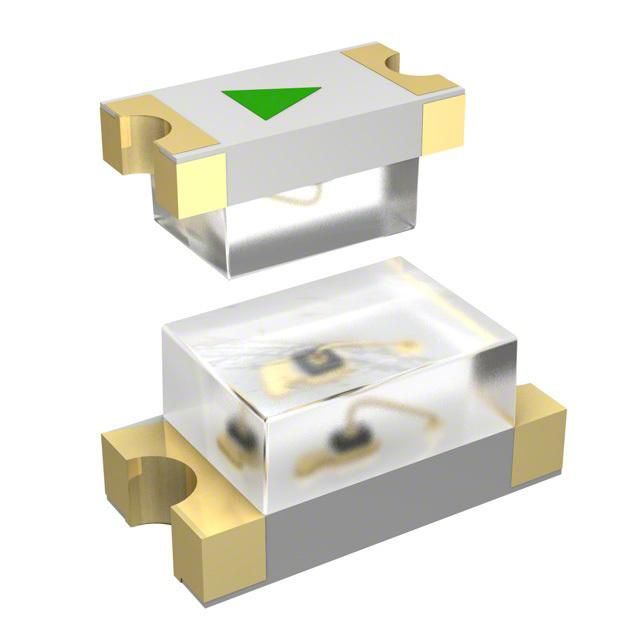

Surface mountable single color blue LED emitter featuring a 0603 package size. This component offers a 470nm wavelength and a luminous intensity of 145mcd with a wide 140° viewing angle. Designed for a forward current of 30mA, it operates within a temperature range of -40°C to 85°C and has a maximum reverse voltage of 5V. The water clear, flat, rectangular lens measures 0.7mm, contributing to its 1.1mm overall height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 150060BS75000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Blue |
| Forward Current | 30mA |
| Height | 0.8mm |
| Length | 1.6mm |
| Lens Color | Colorless |
| Lens Size | 0.7mm |
| Lens Style | Clear, Flat, Rectangular |
| Lens Transparency | Clear |
| Luminous Intensity | 145mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 5V |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Power Dissipation | 105mW |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | WL-SMCW |
| Viewing Angle | 140° |
| Wavelength | 470nm |
| Width | 0.8mm |
| RoHS | Compliant |
