Yellow SMD LED emitter, 0603 package size, featuring a 1.1mm lens and 140° viewing angle. Operates with a 30mA forward current, 5V reverse voltage, and 72mW power dissipation. Emits light at 590nm wavelength with a luminous intensity of 120mcd. This component is HALOGEN FREE, ROHS and REACH compliant, with a temperature range of -40°C to 85°C.
Package0603
MountingSurface Mount
Power72mW
Quick Jump:
Technical Specifications
Wurth Electronics 150060YS75000 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Yellow |
| Forward Current | 30mA |
| Height | 0.7mm |
| Length | 1.6mm |
| Lens Style | Clear, Rectangular |
| Luminous Intensity | 120mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 5V |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Power Dissipation | 72mW |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | WL-SMCW |
| Viewing Angle | 140° |
| Wavelength | 590nm |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 150060YS75000 Datasheet
Download the complete datasheet for Wurth Electronics 150060YS75000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

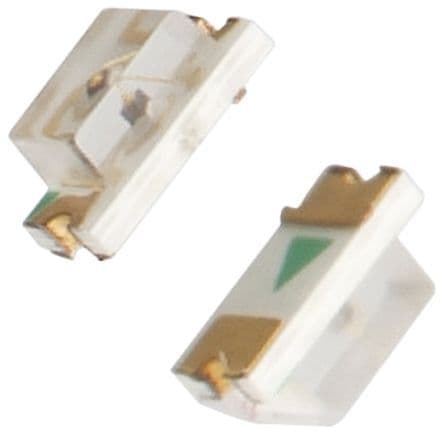

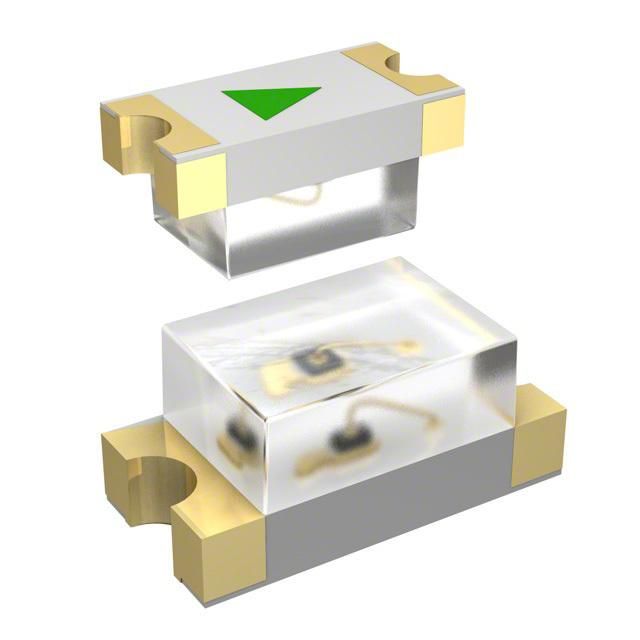

Product Images
