10-position SPST DIP switch featuring a flush slide actuator and gull wing termination for surface mount applications. This component offers a 25mA contact current rating at 24VDC, with gold-plated copper alloy contacts and a mechanical life of 2000 cycles. Constructed with polyphenylene and polyphthalamide body materials, it operates within a temperature range of -40°C to 85°C and is washable. The 1.27mm pitch and compact 2mm height make it suitable for space-constrained designs.
Current Rating25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 416131160810 technical specifications.
General
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene, Polyphthalamide |
| Contact Current Rating | 25mA |
| Contact Material | Copper Alloy, Gold |
| Contact Plating | Gold |
| Current Rating | 25mA |
| Electrical Life | 1000Cycles |
| Height | 2mm |
| Length | 0.541inch |
| Max Operating Temperature | 85°C |
| Mechanical Life | 2000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 10 |
| Number of Positions | 10 |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Pitch | 0.05inch |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | WS-DISV |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | Yes |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 416131160810 Datasheet
Download the complete datasheet for Wurth Electronics 416131160810 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

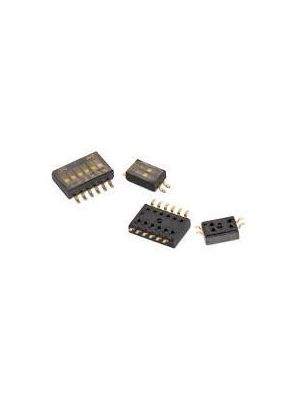

Product Images
