SMD Tactile Switch, top-actuated, with a 160gf operating force and 0.25mm travel. Features a 50mA contact current rating, 12V voltage rating, and a mechanical life of 1,000,000 cycles. Constructed with a polymer actuator and silver-plated stainless steel contacts, this non-illuminated switch offers a 2.5mm height and 5.8mm width. Operates within a -40°C to 85°C temperature range and is RoHS compliant.
Voltage Rating12V
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 430483025816 technical specifications.
General
| Actuator Length | 0.5mm |
| Actuator Material | Polymer, Liquid Crystal Polymer |
| Actuator Type | Standard |
| Color | Black |
| Contact Current Rating | 50mA |
| Contact Material | Stainless Steel, Steel |
| Contact Plating | Silver |
| Contact Type | 1 maker |
| Current Rating | 50mA |
| Height | 2.5mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Length | 6.2mm |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Force | 160gf |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | WS-TASV |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating | 12V |
| Width | 5.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 430483025816 Datasheet
Download the complete datasheet for Wurth Electronics 430483025816 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

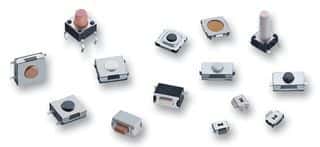

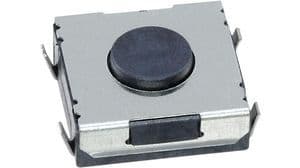

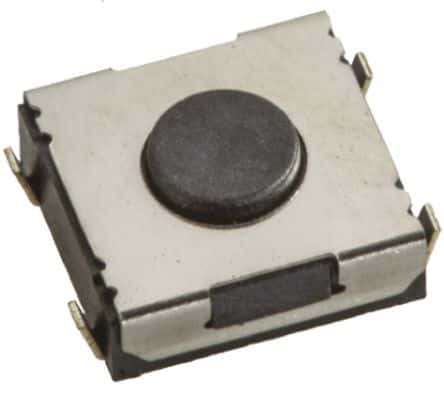

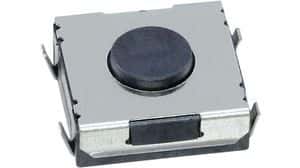

Product Images
