8-position, 2-row unshrouded header with a 2.54mm pitch. Features male pin contacts made of copper with gold plating, offering a 3A current rating and 250V voltage rating. Vertical orientation and through-hole mounting with solder termination. Operating temperature range from -40°C to 105°C.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Wurth Electronics 61300821121 technical specifications.
General
| Color | Black |
| Contact Material | Copper |
| Contact Mating Length | 0.236inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Gender | Male |
| Height | 8.89mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Supply Voltage | 250V |
| Orientation | Vertical |
| Packaging | Bulk |
| Pitch | 0.1inch |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | WR-PHD |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 61300821121 Datasheet
Download the complete datasheet for Wurth Electronics 61300821121 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

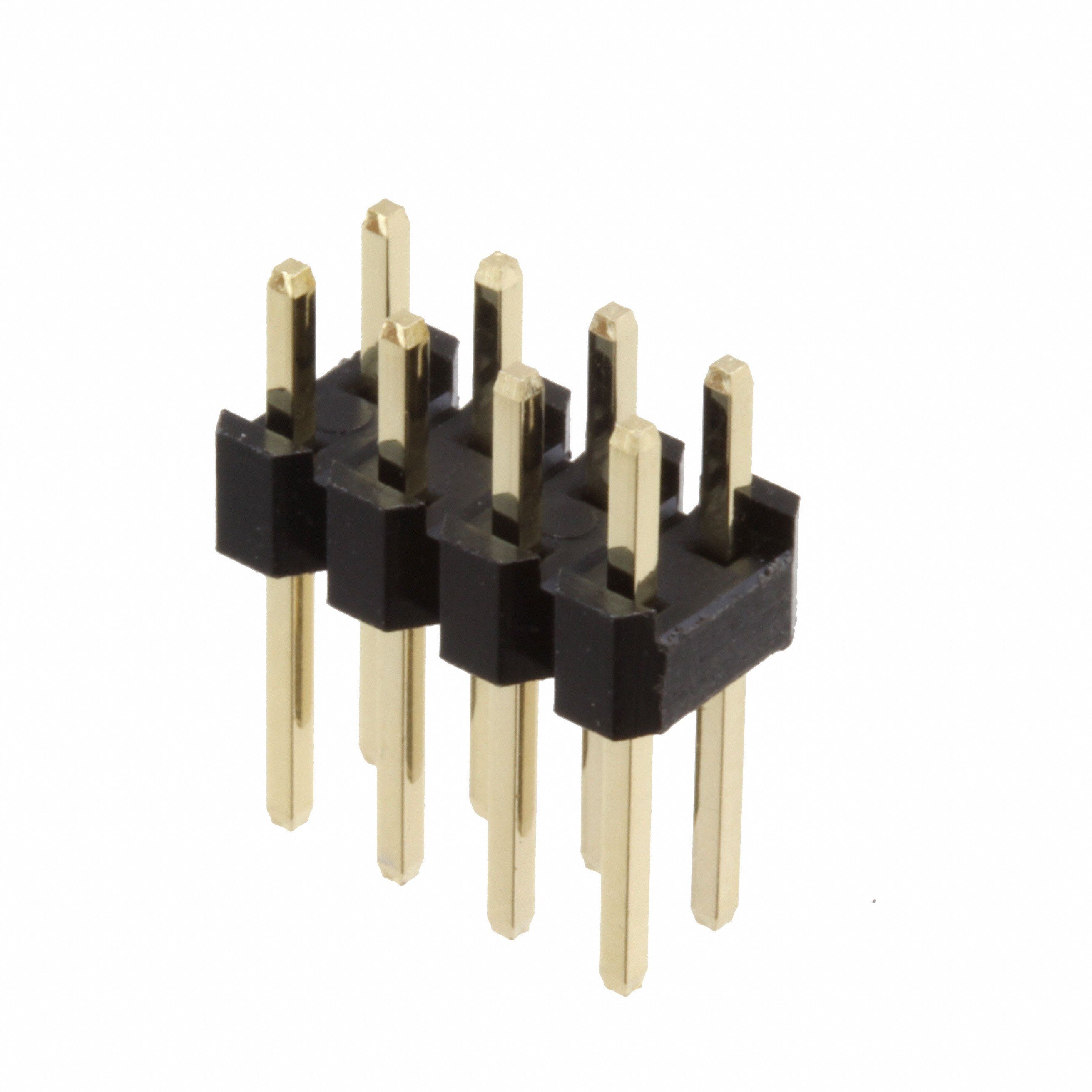

Product Images
