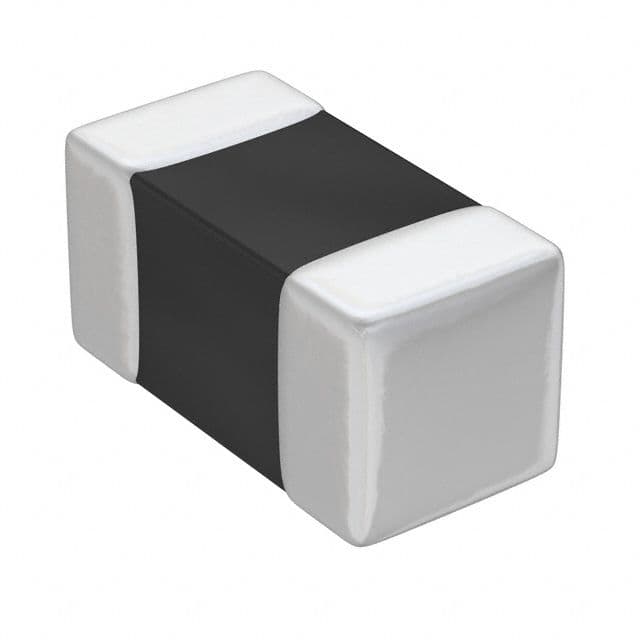

Surface mount EMI/RFI data line filter featuring a ferrite core. This suppression bead offers 240 Ohms impedance and 6.8 nH inductance at 100 MHz. Rated for 200mA DC current, it operates within a -55°C to +125°C temperature range and has a low DC resistance of 750 mOhms. The compact 0201 (0603 metric) case measures 0.6mm x 0.3mm x 0.3mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 742692004 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Package/Case | 0201 |
| Core Material | Ferrite |
| Current Rating | 200mA |
| DC Resistance (DCR) | 750mR |
| Depth | 0.3mm |
| Height | 0.3mm |
| Impedance | 240R |
| Inductance | 6.8nH |
| Lead Free | Lead Free |
| Length | 0.6mm |
| Max Current Rating | 200mA |
| Max DC Current | 200mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 100MHz |
| Series | WE-TMSB |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Width | 0.3mm |
| RoHS | Compliant |
