Ferrite core for noise suppression, featuring a square shape and plastic case for chassis mounting. This component offers 165 Ohms impedance at 100MHz with a 25% tolerance. Designed for wire/cable diameters up to 8mm, it operates within a temperature range of -25°C to 105°C. The snap termination facilitates easy installation.
Package100
MountingChassis Mount
Quick Jump:
Technical Specifications
Wurth Electronics 7427153 technical specifications.
General
| Package/Case | 100 |
| Color | Grey |
| Depth | 20mm |
| Height | 20mm |
| Impedance | 165R |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Chassis Mount |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Star-Ring |
| Shape | Square |
| Termination | SNAP |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Weight | 0.572955oz |
| Width | 23mm |
| Wire/Cable Diameter | 8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7427153 Datasheet
Download the complete datasheet for Wurth Electronics 7427153 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

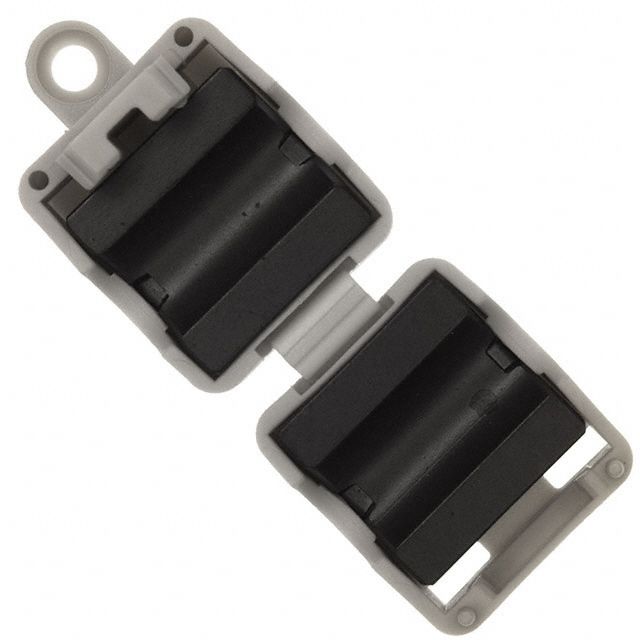

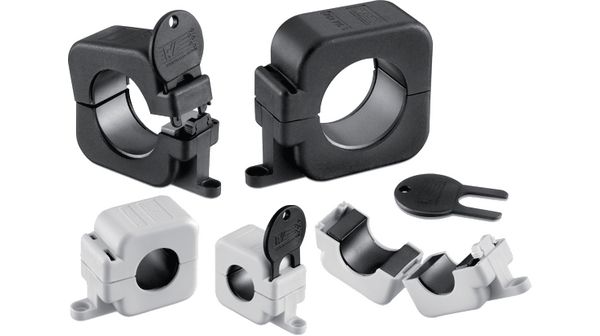

Product Images
