Surface mount EMI/RFI data line ferrite bead with 3 functions, rated for 5A maximum DC current. Features a 2020 imperial / 5050 metric case code, with dimensions of 5mm depth, 4.6mm height, and 5mm width. Offers 416 Ohms impedance at 100MHz test frequency, operating between -40°C and 125°C. Constructed with steel material and SMD/SMT termination, this unshielded component is RoHS compliant and supplied on tape and reel.
Package2220
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 7427511 technical specifications.
General
| Case Code (Imperial) | 2020 |
| Case Code (Metric) | 5050 |
| Package/Case | 2220 |
| Depth | 5mm |
| Height | 4.6mm |
| Impedance | 416R |
| Length | 0.217inch |
| Material | Steel |
| Max Current Rating | 5A |
| Max DC Current | 5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WE-SUKW |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7427511 Datasheet
Download the complete datasheet for Wurth Electronics 7427511 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

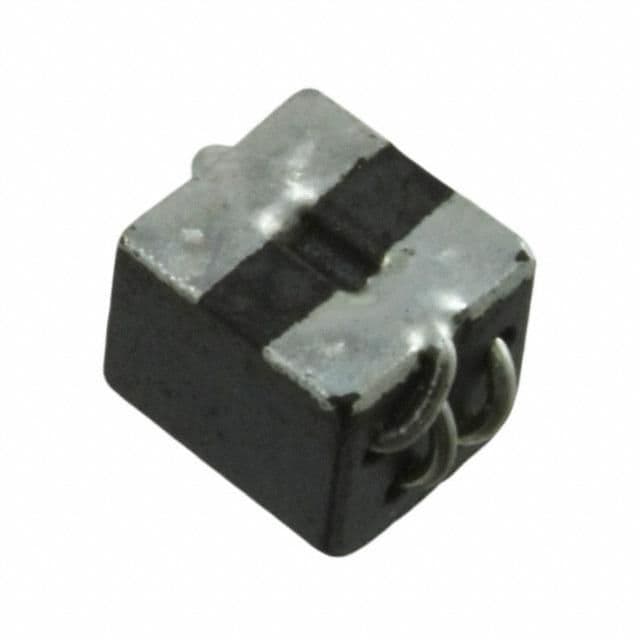

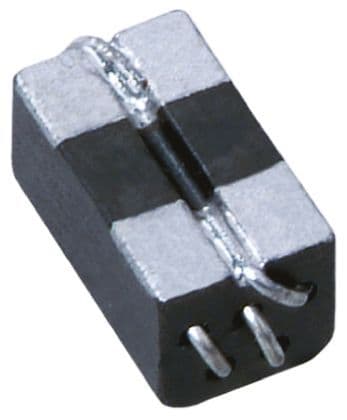

Product Images
