SMD EMI Suppression Ferrite Bead, 1206 (3216 Metric) case code, offers 600 Ohms impedance at 100MHz. Features a ferrite core, 2A current rating, and 100mR DC resistance. Designed for surface mount applications with a compact 3.2mm x 1.6mm x 1.6mm footprint. Operates across a wide temperature range of -55°C to 125°C and is RoHS compliant.
PackageSMD/SMT
Resistance100mR
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 74279218 technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | SMD/SMT |
| Core Material | Ferrite |
| Current Rating | 2A |
| DC Resistance (DCR) | 100mR |
| Depth | 1.6mm |
| Height | 1.6mm |
| Impedance | 600R |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Current Rating | 2A |
| Max DC Current | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 100mR |
| RMS Current (Irms) | 2A |
| RoHS Compliant | Yes |
| Series | WE-CBF |
| Series Resistance | 100mR |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Weight | 0.000988oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 74279218 Datasheet
Download the complete datasheet for Wurth Electronics 74279218 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

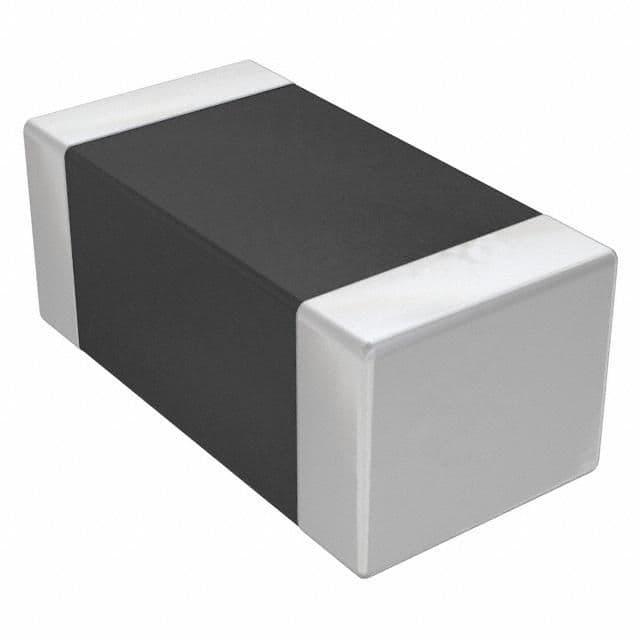

Product Images
