SMD EMI suppression ferrite bead for data lines, featuring a 1608 metric (0603 imperial) case size. This surface mount component offers 68 Ohms impedance at 500MHz, with a maximum current rating of 300mA and a DC resistance of 300mR. Constructed from ferrite material, it operates within a temperature range of -55°C to 125°C and is RoHS compliant.
PackageSMD/SMT
Resistance300mR
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 742792607 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | SMD/SMT |
| Current Rating | 300mA |
| DC Resistance (DCR) | 300mR |
| Depth | 0.8mm |
| Height | 0.8mm |
| Impedance | 68R |
| Length | 1.6mm |
| Material | Ferrite |
| Max Current Rating | 300mA |
| Max DC Current | 300mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 300mR |
| RoHS Compliant | Yes |
| Series | WE-CBF |
| Termination | SMD/SMT |
| Test Frequency | 500MHz |
| Tolerance | 25% |
| Weight | 7.1E-05oz |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 742792607 Datasheet
Download the complete datasheet for Wurth Electronics 742792607 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

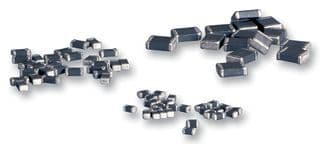

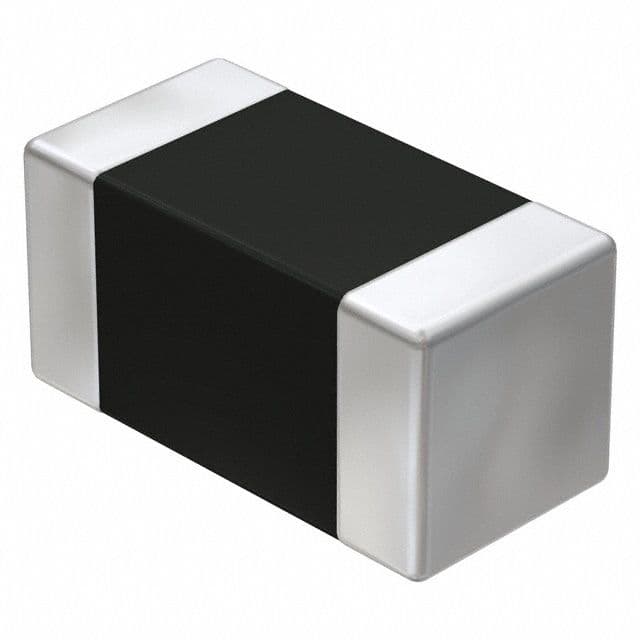

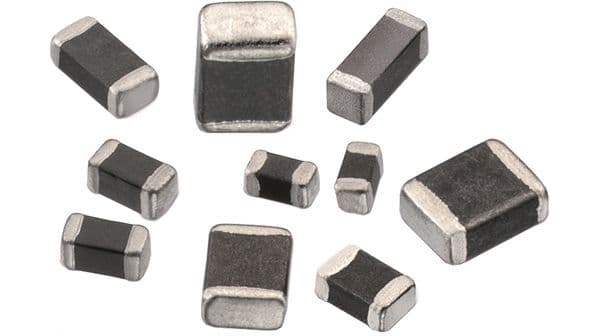

Product Images
