Surface mount ferrite chip for data line EMI/RFI filtering. Features 140 Ohm impedance at 550MHz, a 550mA current rating, and 200mOhm DC resistance. Encased in a 0603 (1608) SMD/SMT package with a compact 1.6mm x 0.8mm x 0.8mm footprint. Operates across a wide temperature range of -55°C to 125°C.
PackageSMD/SMT
Current Rating550mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 742792621 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | SMD/SMT |
| Current Rating | 550mA |
| DC Resistance (DCR) | 200mR |
| Height | 0.8mm |
| Impedance | 140R |
| Length | 1.6mm |
| Max Current Rating | 550mA |
| Max DC Current | 550mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WE-CBF |
| Termination | SMD/SMT |
| Test Frequency | 550MHz |
| Tolerance | 25% |
| Weight | 7.1E-05oz |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 742792621 Datasheet
Download the complete datasheet for Wurth Electronics 742792621 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

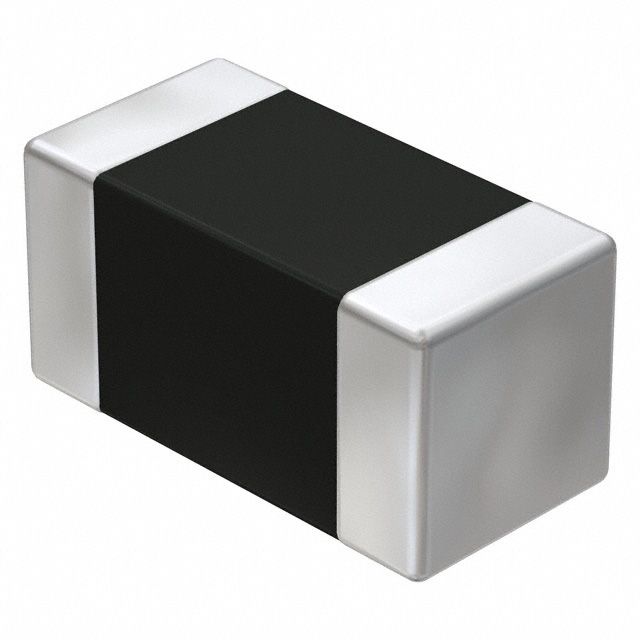

Product Images
