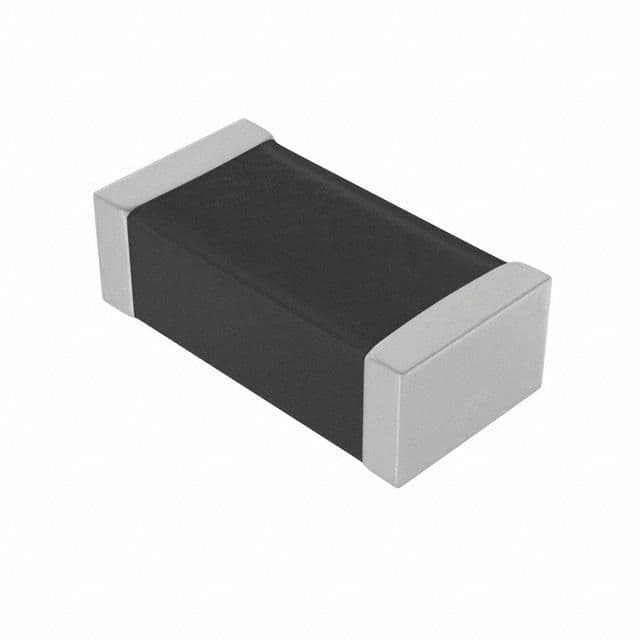

Ferrite chip EMI/RFI filter for data lines, featuring a 1-line configuration and a 250mA current rating. This surface-mount device utilizes a ferrite material and is housed in an EIA 0402 (1005 metric) SMD package. It offers an impedance of 600 Ohms at 100MHz and a DC resistance of 560mOhms. Operating across a temperature range of -55°C to 125°C, this component is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 7427927161 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | SMD/SMT |
| Current Rating | 250mA |
| DC Resistance (DCR) | 560mR |
| Depth | 0.5mm |
| Height | 0.5mm |
| Impedance | 600R |
| Length | 1mm |
| Material | Ferrite |
| Max Current Rating | 250mA |
| Max DC Current | 250mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WE-CBF |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 0.5mm |
| RoHS | Compliant |
Download the complete datasheet for Wurth Electronics 7427927161 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Wurth Electronics 7427927161
Reference design for the AS7265x multispectral sensor chipset (AS72651, AS72652, AS72653). Includes USB power management, Li-ion charging, and 4Mb SPI Flash memory.
