Multi-layer ferrite bead for surface mount applications, featuring 1kΩ impedance at 100MHz with a 25% tolerance. This component offers a maximum DC current rating of 50mA and a low DC resistance of 1.8Ω. Encased in a compact 0603 (1608 metric) SMD/SMT package, it operates across a wide temperature range from -55°C to 125°C. The ferrite core material and tape and reel packaging make it suitable for automated assembly processes.
PackageSMD/SMT
Resistance1.8R
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 742861210 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | SMD/SMT |
| Core Material | Ferrite |
| Depth | 0.8mm |
| Height | 0.8mm |
| Impedance | 1kR |
| Length | 1.6mm |
| Max Current Rating | 50mA |
| Max DC Current | 50mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 1.8R |
| RoHS Compliant | Yes |
| Series | WE-CBF HF |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 742861210 Datasheet
Download the complete datasheet for Wurth Electronics 742861210 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

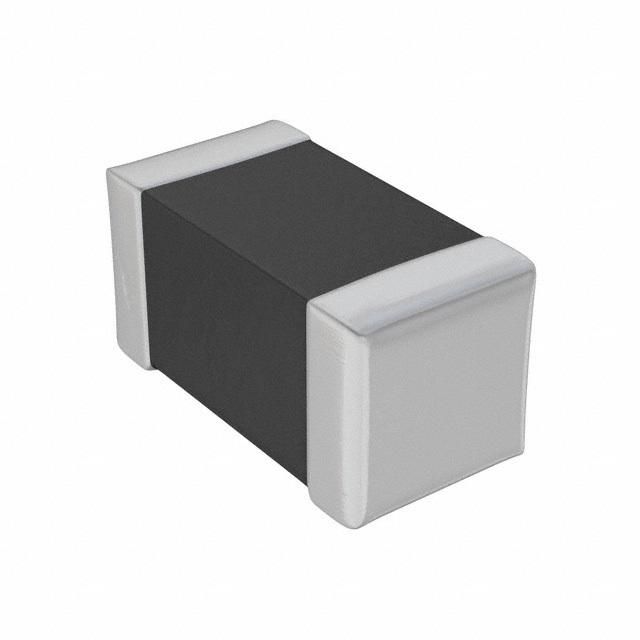

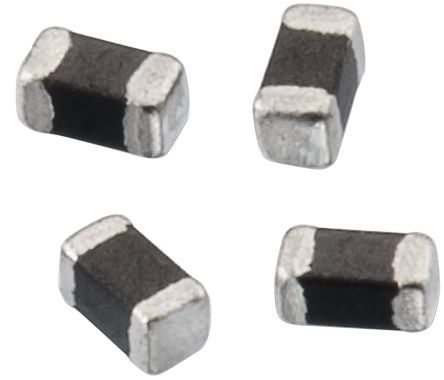

Product Images
