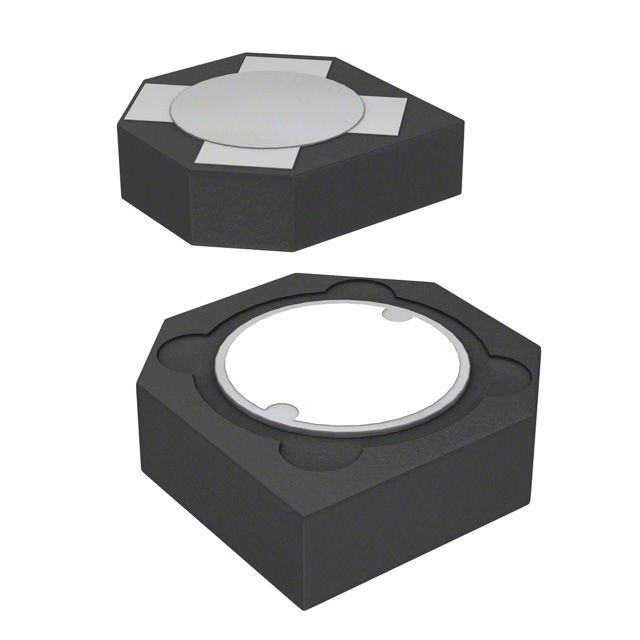

Surface mount fixed inductor with 4.7µH inductance and 30% tolerance, designed for power applications. Features a ferrite core, shielded construction, and a current rating of 480mA. DC resistance is 290mΩ, with a saturation current of 500mA. Operating temperature range is -40°C to 125°C.
PackageNonstandard
Current Rating480mA
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Wurth Electronics 744030004 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 480mA |
| DC Resistance (DCR) | 290mR |
| Depth | 3.5mm |
| Height | 0.95mm |
| Height - Seated (Max) | 0.041inch |
| Inductance | 4.7uH |
| Inductance Tolerance | 30% |
| Length | 0.138inch |
| Max DC Current | 480mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 480mA |
| RoHS Compliant | Yes |
| Saturation Current | 500mA |
| Self Resonant Frequency | 100MHz |
| Series | WE-TPC |
| Shielding | Shielded |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 0.13inch |
Compliance
| RoHS | Compliant |
