Surface mount fixed inductor with 10µH inductance and 20% tolerance, designed for automotive applications. Features a semi-shielded wirewound construction with a ferrite core, offering a current rating of 840mA and a saturation current of 870mA. Operates within a temperature range of -40°C to 125°C, with a low DC resistance of 230mΩ. This component is RoHS compliant and packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating840mA
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Wurth Electronics 74404032100 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 840mA |
| DC Resistance (DCR) | 230mR |
| Height | 1.5mm |
| Height - Seated (Max) | 0.059inch |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Length | 0.118inch |
| Max DC Current | 840mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 840mA |
| RoHS Compliant | Yes |
| Saturation Current | 870mA |
| Self Resonant Frequency | 33MHz |
| Series | WE-LQS |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 74404032100 Datasheet
Download the complete datasheet for Wurth Electronics 74404032100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

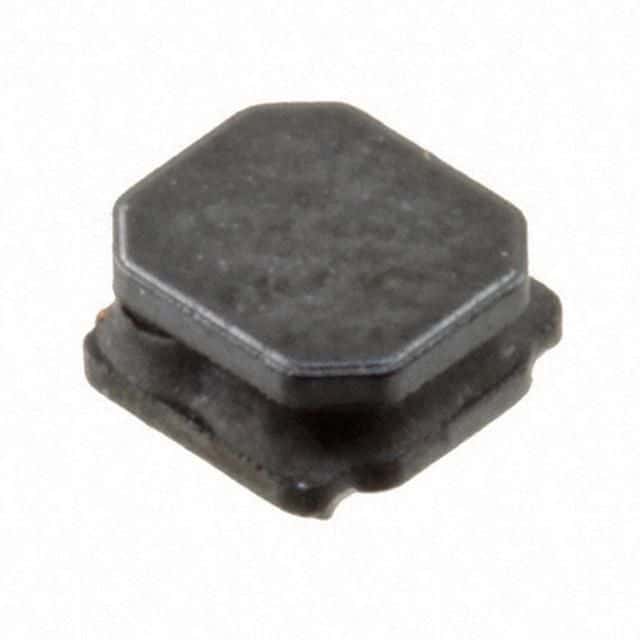

Product Images
