Surface mount fixed inductor featuring 3.3µH inductance with a 20% tolerance, designed for power applications. This semi-shielded, wirewound component offers a 2A current rating and a low 55mΩ DC resistance. Operating within a -40°C to 125°C temperature range, it has a saturation current of 2.9A and a self-resonant frequency of 56MHz. The ferrite core construction and 1.8mm height make it suitable for demanding automotive environments.
PackageNonstandard
Current Rating2A
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Wurth Electronics 74404042033 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 2A |
| DC Resistance (DCR) | 55mR |
| Height | 1.8mm |
| Height - Seated (Max) | 0.071inch |
| Inductance | 3.3uH |
| Inductance Tolerance | 20% |
| Length | 0.157inch |
| Max DC Current | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 2A |
| RoHS Compliant | Yes |
| Saturation Current | 2.9A |
| Self Resonant Frequency | 56MHz |
| Series | WE-LQS |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 74404042033 Datasheet
Download the complete datasheet for Wurth Electronics 74404042033 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

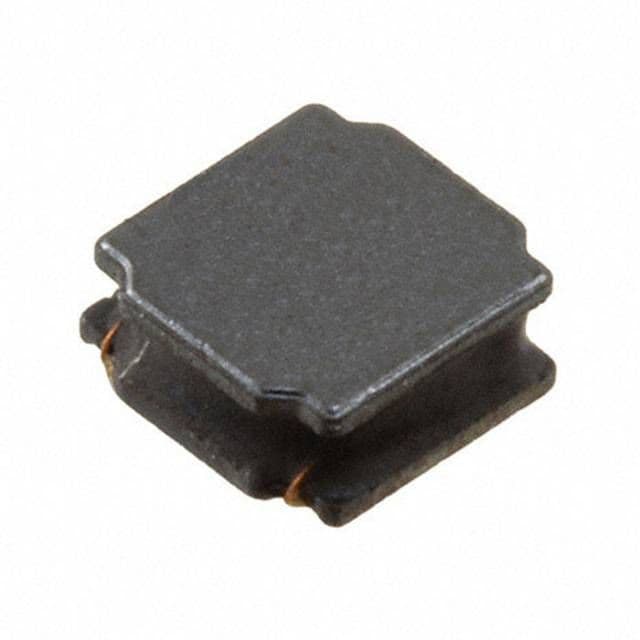

Product Images
