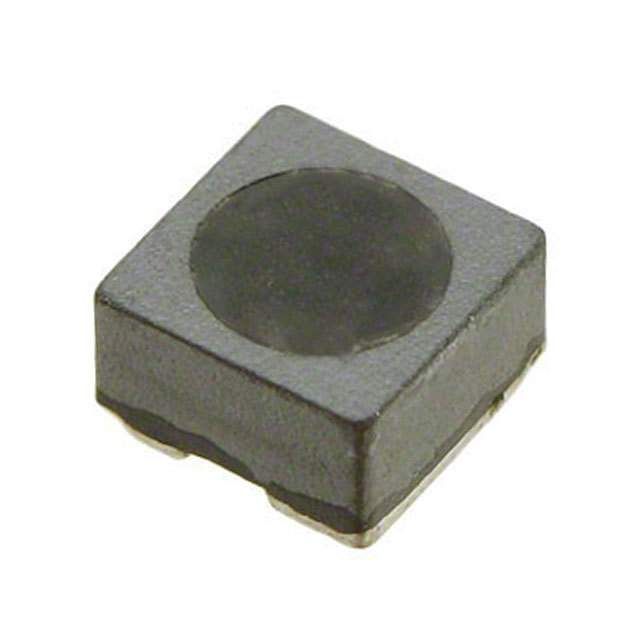

Surface mount fixed inductor featuring 12µH inductance with a 30% tolerance, designed for power applications. This shielded, wirewound ferrite core component offers a current rating of 1.12A and a saturation current of 950mA. It exhibits a low DC resistance of 125mΩ and operates across a temperature range of -40°C to 125°C. The component is housed in a 1919 (4848 metric) case with dimensions of 4.8mm x 4.8mm x 2.8mm.
Package1919
Current Rating1.12A
MountingSurface Mount
Inductance12uH
Quick Jump:
Technical Specifications
Wurth Electronics 744043120 technical specifications.
General
| Case Code (Imperial) | 1919 |
| Case Code (Metric) | 4848 |
| Package/Case | 1919 |
| Core Material | Ferrite |
| Current Rating | 1.12A |
| DC Resistance (DCR) | 125mR |
| Height | 2.8mm |
| Height - Seated (Max) | 0.118inch |
| Inductance | 12uH |
| Inductance Tolerance | 30% |
| Length | 4.8mm |
| Max DC Current | 1.12A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 1.12A |
| RoHS Compliant | Yes |
| Saturation Current | 950mA |
| Self Resonant Frequency | 30MHz |
| Series | WE-TPC |
| Series Resistance | 125mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Weight | 0.009065oz |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
