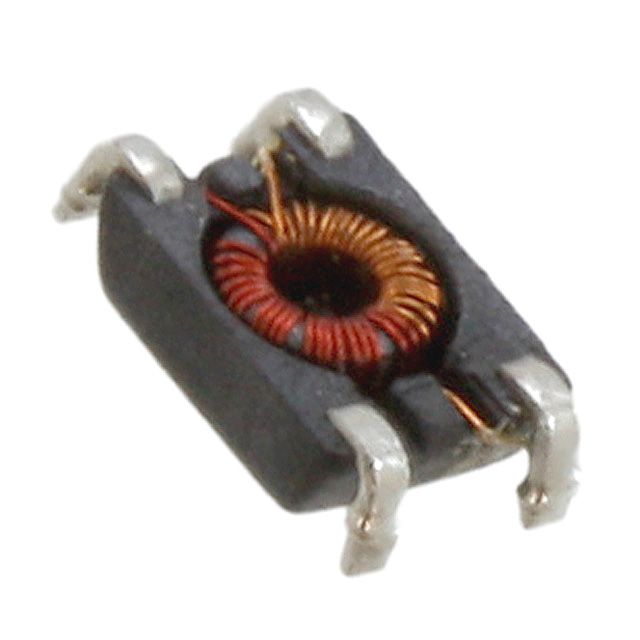

Surface mount data line filter featuring two functions, a 300mA current rating, and 80V DC voltage rating. This ferrite core filter offers 51µH inductance with a 50% tolerance at a 100kHz test frequency, and a 300Ω impedance. Designed for SMD/SMT applications, it operates within a -40°C to +105°C temperature range and is RoHS compliant. The component measures 6.5mm in length, 3.6mm in width, and 1.65mm in height, with a low 160mΩ DC resistance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 744212510 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Wurth Electronics 744212510 technical specifications.
| Package/Case | SMD/SMT |
| Core Material | Ferrite |
| Current | 300mA |
| Current Rating | 300mA |
| DC Resistance (DCR) | 160mR |
| Depth | 3.6mm |
| Height | 1.65mm |
| Impedance | 300R |
| Inductance | 51uH |
| Inductance Tolerance | 50% |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Current Rating | 300mA |
| Max DC Current | 300mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | WE-SL1 |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 50% |
| DC Rated Voltage | 80V |
| Width | 3.6mm |
| RoHS | Compliant |
