Surface mount data line filter with two functions, rated for 50V and 650mA maximum DC current. Features 110mR DC resistance and 45 Ohm impedance at 100MHz. Operates across a frequency range of 10MHz to 1000MHz, with a temperature range of -40°C to 105°C. Packaged in a 0603 case size, this RoHS compliant component is supplied on tape and reel.
Frequency10 1000MHz
Package0603
Current650mA
Resistance110mR
Quick Jump:
Technical Specifications
Wurth Electronics 744230450 technical specifications.
General
| Package/Case | 0603 |
| Current | 650mA |
| Current Rating | 650mA |
| DC Resistance (DCR) | 110mR |
| Depth | 0.85mm |
| Height | 0.047inch |
| Impedance | 45R |
| Length | 1.6mm |
| Max Current Rating | 650mA |
| Max DC Current | 650mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Operating Frequency | 10 1000MHz |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 110mR |
| RoHS Compliant | Yes |
| Series | WE-CNSW |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.85mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744230450 Datasheet
Download the complete datasheet for Wurth Electronics 744230450 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

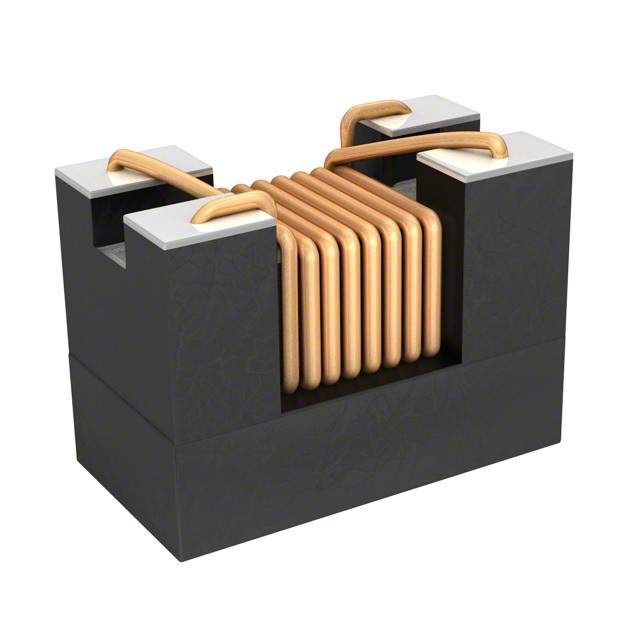

Product Images
