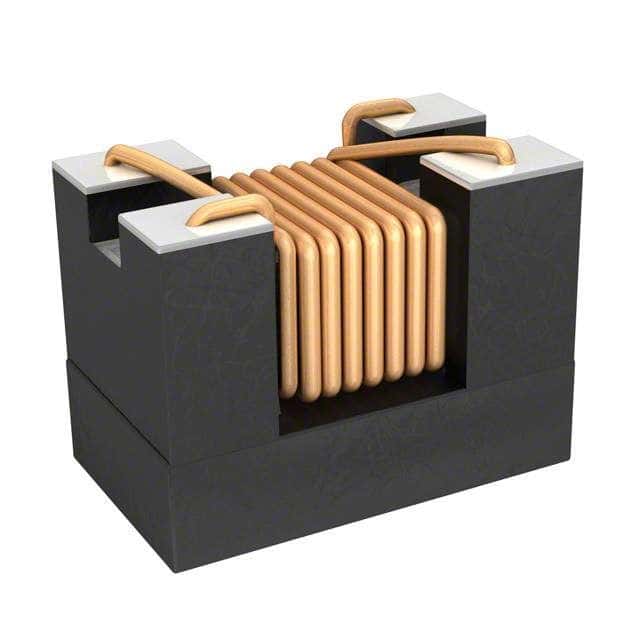

Surface mount data line filter featuring 2 functions, a 50V voltage rating, and a 0.4A current capacity. This RoHS compliant component utilizes a ferrite core, offering 67 Ohms impedance at 100MHz and 22 microhenries inductance. Designed for surface mounting with SMD/SMT termination, it operates within a -40°C to 125°C temperature range and has a low DC resistance of 250mR. The 0805 package measures 2mm in length, 1.2mm in width, and 1.2mm in height.
Frequency100MHz
Package0805
Current400mA
Resistance250mR
Quick Jump:
Technical Specifications
Wurth Electronics 744231061 technical specifications.
General
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current | 400mA |
| Current Rating | 400mA |
| DC Resistance (DCR) | 250mR |
| Depth | 1.2mm |
| Height | 1.2mm |
| Impedance | 67R |
| Inductance | 22H |
| Length | 2mm |
| Max Current Rating | 400mA |
| Max DC Current | 400mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Operating Frequency | 100MHz |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 250mR |
| RoHS Compliant | Yes |
| Series | WE-CNSW |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000423oz |
| Width | 1.2mm |
