Surface mount data line filter featuring 2 functions, 50V voltage rating, and 330mA current capacity. This ferrite core filter offers 180 Ohms impedance at 100MHz and 33 microhenries inductance. Designed for SMD mounting in an 0805 package, it operates from -40°C to 125°C with a low DC resistance of 350mR. RoHS compliant and suitable for tape and reel packaging.
Frequency100MHz
Package0805
Current330mA
Resistance350mR
Quick Jump:
Technical Specifications
Wurth Electronics 744231181 technical specifications.
General
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current | 330mA |
| Current Rating | 330mA |
| DC Resistance (DCR) | 350mR |
| Depth | 1.2mm |
| Height | 1.2mm |
| Impedance | 180R |
| Inductance | 33H |
| Length | 2mm |
| Max Current Rating | 330mA |
| Max DC Current | 330mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Operating Frequency | 100MHz |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 350mR |
| RoHS Compliant | Yes |
| Series | WE-CNSW |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000423oz |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744231181 Datasheet
Download the complete datasheet for Wurth Electronics 744231181 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

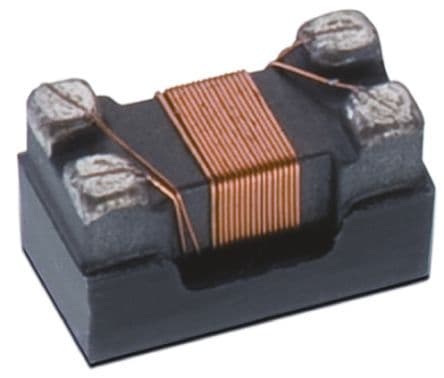

Product Images
