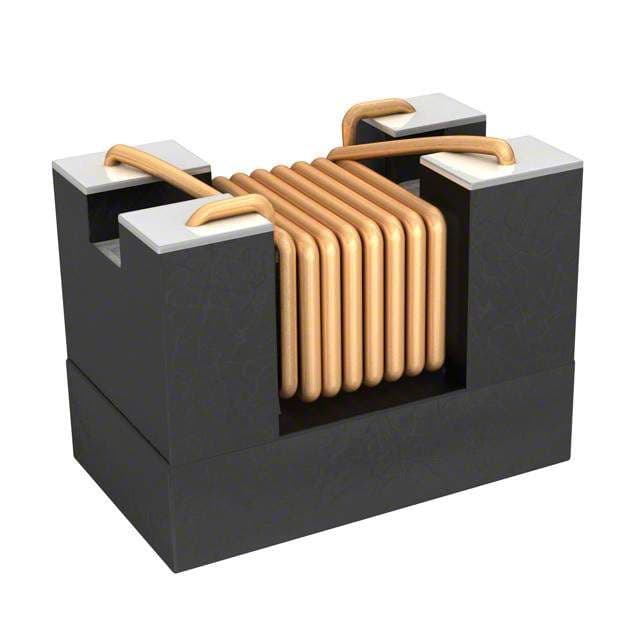

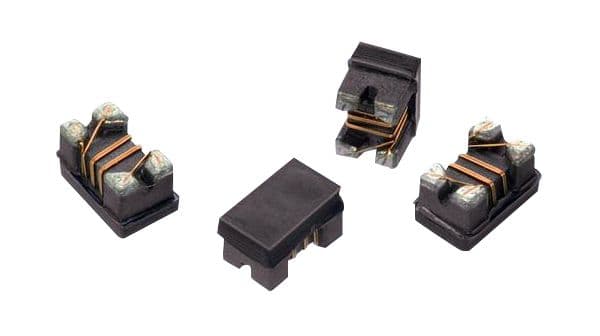

Surface mount data line filter featuring 2 functions, a 50V voltage rating, and 280mA current handling. This RoHS compliant component offers 6.8µH inductance and 370Ω impedance at 100MHz, with a maximum DC resistance of 450mΩ. Designed for operation between -40°C and 125°C, it utilizes a ferrite core and is packaged in an 0805 case.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 744231371 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current | 280mA |
| Current Rating | 280mA |
| DC Resistance (DCR) | 450mR |
| Depth | 1.2mm |
| Height | 1.2mm |
| Impedance | 370R |
| Inductance | 6.8H |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Current Rating | 280mA |
| Max DC Current | 280mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Operating Frequency | 100MHz |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 450mR |
| RoHS Compliant | Yes |
| Series | WE-CNSW |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000423oz |
| Width | 1.2mm |
| RoHS | Compliant |
