Surface mount data line filter featuring 2 functions, 50V voltage rating, and 370mA current handling. This EMI/RFI filter utilizes a ferrite core and offers 3.3µH inductance with 90Ω impedance at 100MHz. Designed for surface mounting in a 1206 package, it operates within a -40°C to +125°C temperature range and has a DC resistance of 300mΩ. RoHS compliant and lead-free.
Frequency100MHz
Package1206
Current370mA
Resistance300mR
Quick Jump:
Technical Specifications
Wurth Electronics 744232090 technical specifications.
General
| Package/Case | 1206 |
| Core Material | Ferrite |
| Current | 370mA |
| Current Rating | 370mA |
| DC Resistance (DCR) | 300mR |
| Depth | 1.6mm |
| Height | 0.083inch |
| Impedance | 90R |
| Inductance | 3.3H |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Current Rating | 370mA |
| Max DC Current | 370mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Operating Frequency | 100MHz |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 300mR |
| RoHS Compliant | Yes |
| Series | WE-CNSW |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.001376oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744232090 Datasheet
Download the complete datasheet for Wurth Electronics 744232090 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

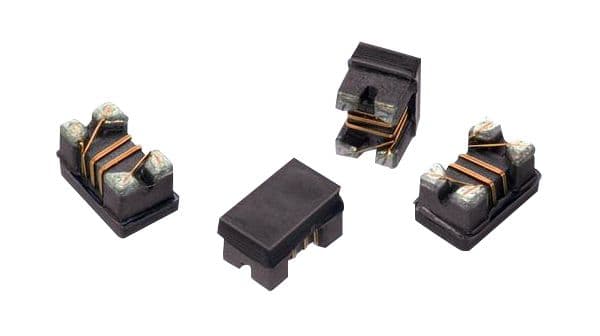

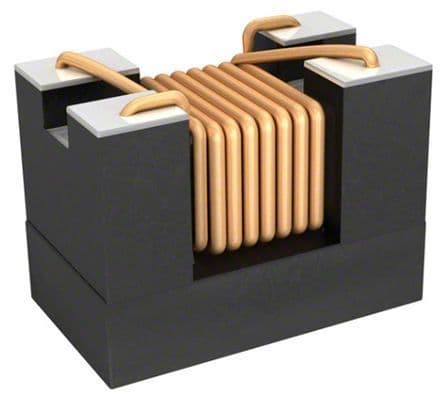

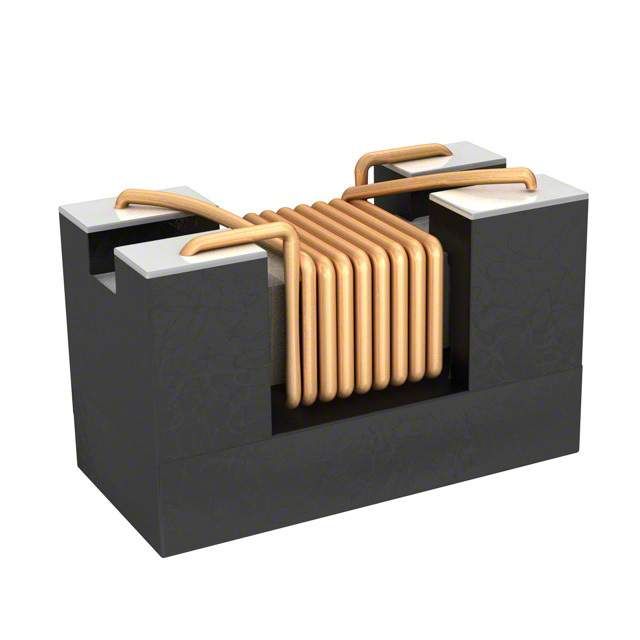

Product Images
