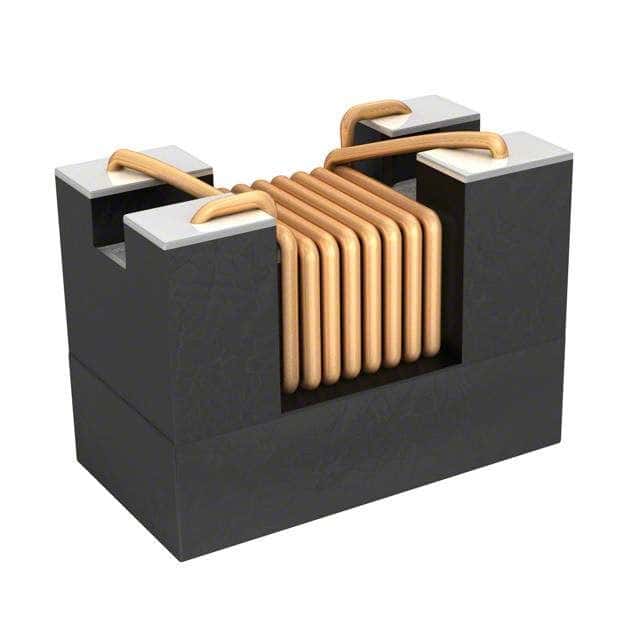

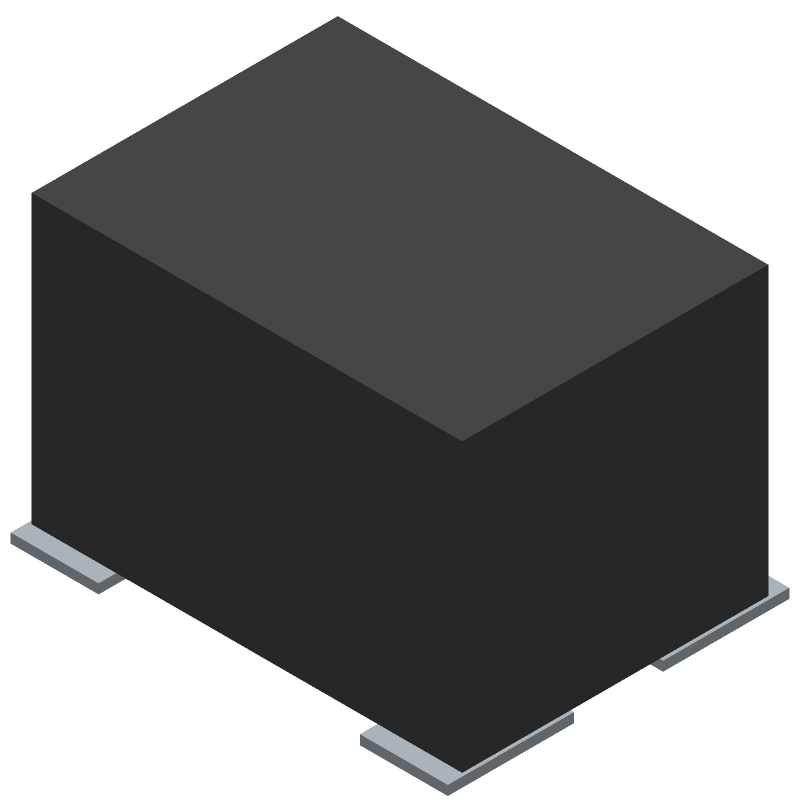

Surface mount data line filter, 2 function, 60V DC rated voltage, 2A max current. Features 300nH inductance, 90 Ohm impedance, and 50mR DC resistance. Encased in a 1812 EIA standard package with ferrite core material. Operates from -40°C to 125°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 744235900 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 1812 |
| Core Material | Ferrite |
| Current | 2A |
| Current Rating | 2A |
| DC Resistance (DCR) | 50mR |
| Depth | 3.2mm |
| Height | 2.8mm |
| Impedance | 90R |
| Inductance | 300nH |
| Length | 4.5mm |
| Max Current Rating | 2A |
| Max DC Current | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 50mR |
| RoHS Compliant | Yes |
| Series | WE-CNSW |
| Termination | SMD/SMT |
| Tolerance | 25% |
| Voltage Rating | 60V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 60V |
| Width | 3.2mm |
| RoHS | Compliant |
