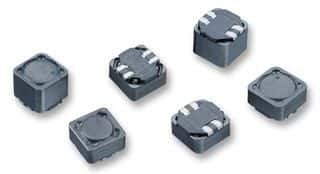

Dual Common Mode Choke, 1mH inductance with 20% tolerance, designed for power and signal lines. Features 160kΩ impedance at 100kHz, a 300mA current rating, and 2.5Ω DC resistance. Encased in a 1210 (3225 metric) SMD package with ferrite core, operating from -40°C to 125°C. This RoHS compliant component offers 80V DC rated voltage and is supplied on tape and reel.
Package1210
Current300mA
Resistance2.5R
Current Rating300mA
Quick Jump:
Technical Specifications
Wurth Electronics 744284102 technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Core Material
Ferrite
Current
300mA
Current Rating
300mA
DC Resistance (DCR)
2.5R
Depth
12.5mm
Height
10.5mm
Impedance
160kR
Inductance
1mH
Inductance Tolerance
20%
Length
12.5mm
Max Current Rating
300mA
Max DC Current
300mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Lines
2
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
2.5R
RoHS Compliant
Yes
Series
WE-SCC
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
DC Rated Voltage
80V
Width
12.5mm
Compliance
RoHS
Compliant
