Shielded wirewound fixed inductor with 330nH inductance and 20% tolerance, designed for surface mount applications. Features a ferrite core, 27A current rating, and 0.37mΩ DC resistance. Operates within a -40°C to 125°C temperature range, with a saturation current of 30A and RMS current of 27A. Packaged in tape and reel for efficient assembly.
PackageNonstandard
Current Rating27A
MountingSurface Mount
Inductance330nH
Quick Jump:
Technical Specifications
Wurth Electronics 744308033 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 27A |
| DC Resistance (DCR) | 0.37mR |
| Height | 0.268inch |
| Inductance | 330nH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 0.398inch |
| Max DC Current | 27A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 27A |
| RoHS Compliant | Yes |
| Saturation Current | 30A |
| Self Resonant Frequency | 35MHz |
| Series | WE-HCM |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744308033 Datasheet
Download the complete datasheet for Wurth Electronics 744308033 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

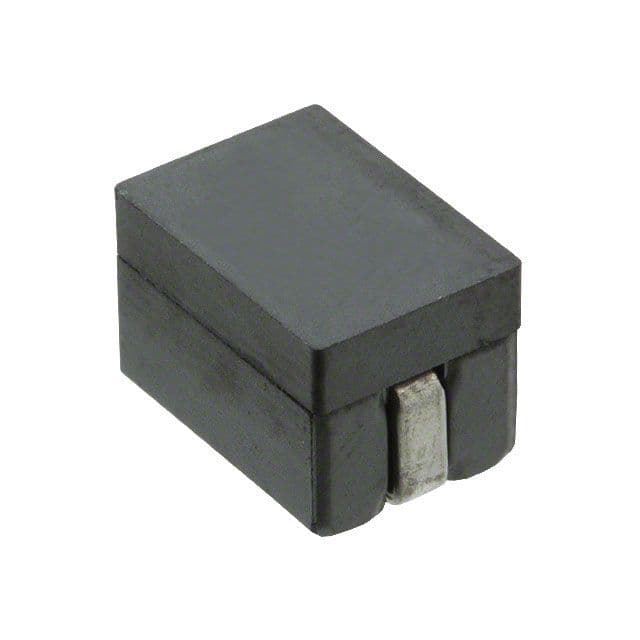

Product Images
