Surface mount fixed inductor featuring 1µH inductance with a 20% tolerance, designed for automotive applications and AEC-Q200 qualified. This shielded wirewound power choke offers a 15A current rating, 19A saturation current, and a low 4.6mΩ DC resistance. Operating across a wide temperature range of -40°C to 150°C, it is packaged in a 7040 case with dimensions of 6.9mm width, 7.0mm length, and 3.8mm height, supplied on tape and reel.
Package7040
Current Rating15A
MountingSurface Mount
Inductance1uH
Quick Jump:
Technical Specifications
Wurth Electronics 744311100 technical specifications.
General
| Package/Case | 7040 |
| Current Rating | 15A |
| DC Resistance (DCR) | 4.6mR |
| Height | 3.8mm |
| Height - Seated (Max) | 0.157inch |
| Inductance | 1uH |
| Inductance Tolerance | 20% |
| Length | 0.272inch |
| Max DC Current | 15A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 15A |
| RoHS Compliant | Yes |
| Saturation Current | 19A |
| Self Resonant Frequency | 85MHz |
| Series | WE-HCI |
| Series Resistance | 4.6R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744311100 Datasheet
Download the complete datasheet for Wurth Electronics 744311100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

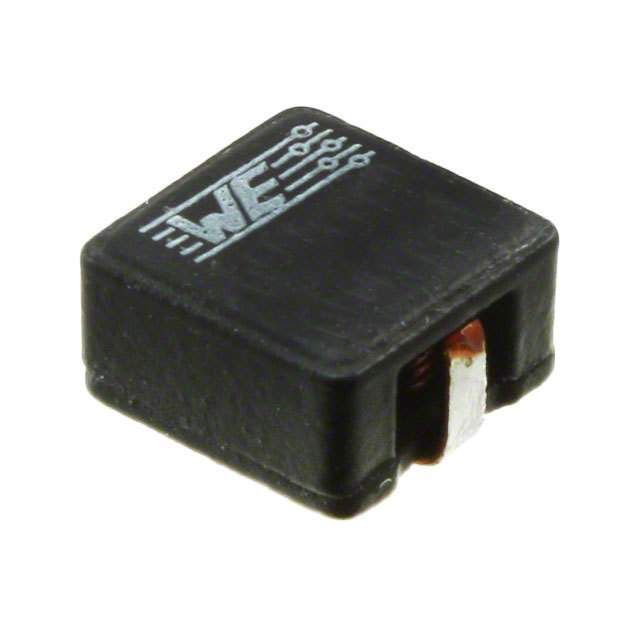

Product Images
